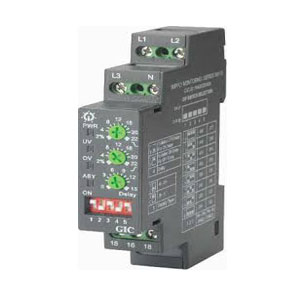

GIC MA21DN Voltage Monitoring
The GIC MA21DN Voltage Monitoring offers 208 - 480 VAC, (3 Phase 3 Wire) supply voltage, 1 C/O relay output, Base / DIN rail mounting, IP 20 for Terminals, IP 30 for Enclosure degree of protection. Manufactured by GIC under the GIC Voltage Monitoring category, this model belongs to the GIC DM Series.
| Brand | GIC |
| Product Type | Voltage Monitoring |
| Model Number | MA21DN |
GIC MA21DN Voltage Monitoring β Technical Specifications
| Specification | Value |
|---|---|
| Supply Voltage | 208 - 480 VAC, (3 Phase 3 Wire) |
| Supply Variation | -12% to + 10% |
| Frequency | 50/60 Hz |
| Power Consumption (Max.) | 3 VA |
| Phase Loss | Yes |
| Phase Asymmetry | 5% to 15% |
| ON Delay | 5s |
| Trip Time (OFF Delay) | 0.5 to 15 s (Selectable) |
| Relay Output | 1 C/O |
| Contact Rating | 5A @ 250 VAC / 30 VDC (Resistive) |
| Electrical Life | 1X10^ 5 |
| Mechanical Life | 3X10^ 6 |
| Utilization Category AC-15 | Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3.0/1.5 A |
| Utilization Category DC-13 | Rated Voltage (Ue): 24/125/250 V, Rated Current (Ie): 2.0/0.22/0.1 A |
| Operating Temperature | - 15 C to +60 C |
| Storage Temperature | - 20 C to +80 C |
| Humidity (Non Condensing) | 95% (Rh) |
| Enclosure | Flame Retardant UL 94-V0 |
| Dimension (W x H x D) (in mm) | 18 x 58.5 x 90 |
| Weight | 70 g |
| Mounting | Base / DIN rail |
| Degree of Protection | IP 20 for Terminals, IP 30 for Enclosure |
