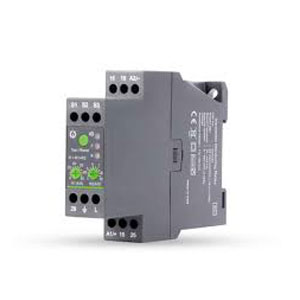

GIC IMR122 Insulation Monitoring Relay
The GIC IMR122 Insulation Monitoring Relay offers 24V to 240V AC/DC rated supply voltage, 1 × 10^7 Operations mechanical life, Enclosure -IP 40, Terminals- IP 20 degree of protection , Din rail mounting. Manufactured by GIC under the GIC Insulation Monitoring Relay category, this model belongs to the GIC IMR Series.
| Brand | GIC |
| Product Type | Insulation Monitoring Relay |
| Model Number | IMR122 |
GIC IMR122 Insulation Monitoring Relay – Technical Specifications
| Specification | Value |
|---|---|
| Rated Supply voltage Us | 24V to 240V AC/DC |
| Supply voltage tolerance | -15 to +10% |
| Rated frequency Fs | DC or 15 to 400 Hz |
| Frequency range | 13.5 to 440 Hz |
| Typical Power Consumption | 13.5 to 440 Hz, 3VA @240VAC |
| Number of Relays | 2 No’s |
| Contact arrangement | Relay 1 : 1 C/O (15,16,18); Relay 2 : NO (25,28) |
| Contact rating | NO -5A @250VAC/30 VDC; NC -3A @250VAC/30 VDC |
| Mechanical Life | 1 × 10^7 Operations |
| Electrical Life | 1 × 10^5 Operations |
| Relay 1 (15,16,18) | De-energize to trip (Fail safe mode) |
| Relay 2 (25,28) | Energize to trip (Non fail safe mode) |
| Operating Temperature | -25 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Humidity | 95% RH (Without condensation) |
| Altitude | < 2000 meters |
| Pollution Degree | 3 |
| Over voltage category | III |
| Operating Mode | Continuous operation |
| Degree of protection | Enclosure -IP 40, Terminals- IP 20 |
| Housing | UL94-00 |
| Mounting | Din rail |
| Mounting position | Any |
| Dimensions (L X W X D) | 83 x 23 x 114 in mm |
| Weight (Unpacked) | 140 gm Approx. |
