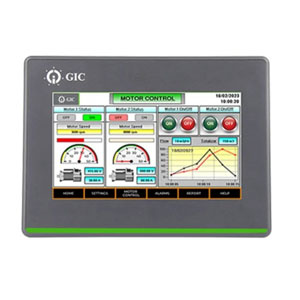

GIC HM107B-0000 Human Machine Interface
The GIC HM107B-0000 Human Machine Interface offers a 24 V DC supply voltage, 65536 color TFT LCD panel type, 4 wire resistive > 1,000,000 operated touch screen, 0°C to +50°Coperating temperature. Manufactured by GIC under the GIC Human Machine Interfaces category, this model belongs to the GIC HM Series.
| Brand | GIC |
| Product Type | HMI - Human Machine Interface |
| Model Number | HM107B-0000 |
GIC HM107B-0000 Human Machine Interface – Technical Specifications
| Specification | Value |
|---|---|
| Supply voltage | 24 V DC |
| Nominal supply voltage range | (- 15% to + 20%) (20.4 to 28.8 VDC) |
| Power consumption (max.) | 6 W |
| Over voltage category | 1 in accordance with IEC/EN 60664-1 |
| Backup battery | 3V lithium battery |
| Backup battery life | 5 years or more at 25°C |
| Panel size | 7" |
| Panel type | 65536 color TFT LCD |
| Resolution | 800 x 480 pixels |
| Brightness | 400 Cd/m2 |
| Backlight life | 50000 hours |
| CPU | Cortex-M7 (600MHz) 1284 DMIPS (2.14DMIPS/M Hz) |
| ROM | 32 MB |
| RAM | 32 MB |
| Touch screen | 4 wire resistive > 1,000,000 operate |
| RTC | Builtin |
| Accuracy of the real-time clock | Typ. ± 2 min/month |
| COM port 1 | RS232/485 (Supporting Flow Control RTS-CTS) |
| COM port 2 | RS232/RS422 /RS 485 |
| USB host | 1 (2.0) |
| USB slave | 1 (2.0) |
| Ethernet | No |
| SD card slot | No |
| Operating temperature | 0°C to +50°C |
| Storage temperature | -20°C to +60°C |
| Humidity | 10% to 90% RH [0°C - 40°C] and 10% to 55% RH [41°C - 50°C] |
| Maximum operating altitude | Operation: 2000 m ; Transport: 0 - 3000 m |
| Pollution degree | 2 |
| Degree of protection | IP65 (For Front Panel) |
| Mounting | Flush with screw clamp |
| Mounting position | Horizontal |
| Panel cutout dimensions (L) x (W) in mm | 190 X 135 |
| Dimensions (L) x (W) in mm | 207 X 152.3 X 36.5 |
| Terminal type | Pluggable Euro type terminal |
| Screw tightening torque | 0.5 N.m. (4.4 lb.in) |
