During technical comparisons, BS31F2 appears alongside Autonics Timers, GIC Temperature Controller and GIC V0Ddts so engineers assess signal types, ingress protection, and ambient tolerances accurately.

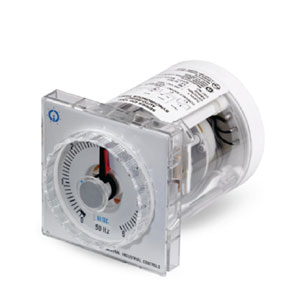

GIC BS31F2 Timer
The GIC BS31F2 Timers offers 95% to 105% frequency, -5°C to 45°C operating Temperature, IP20 degree of protection , 96 X 96 X 100 Dimensions (W X H X D). Manufactured by GIC under the GIC Timers category, this model belongs to the GIC DT Series.
| Brand | GIC |
| Product Type | Timers |
| Model Number | BS31F2 |
GIC BS31F2 Timer – Technical Specifications
| Specification | Value |
|---|---|
| Timing range | 0.15s to 120h |
| Timing Ranges(SR) & (MR) | 6.0 - 120 MIN |
| Voltage | 110V AC 50 Hz |
| Delay | With ‘NO VOLT’ |
| Mounting | Flush (door) Mtg. |
| Contact | 1 Inst + 1 Del C/O |
| Supply Variation | - 20% to +10% |
| Frequency | 95% to 105% |
| Power consumption | 10 VAC |
| Output Contact | 1 Instant + 1 Delayed / 1 Instant + 2 Delayed (Optional) |
| Contact rating | 6A (resistive) @ 250 VAC |
| Switching Frequency | 3000 operations/hr. (Max.) |
| Repeat Accuracy | ± 0.5% of Full Scale Range @ Constant Frequency |
| Operating Temperature | -5°C to 45°C |
| Enclosure | Conforms to IP30 - IS 13947. |
| Degree of Protection | IP20 |
| Terminal Connection | 1– 2.5 mm² solid/stranded. |
| Dimensions (W X H X D) in mm | 96 X 96 X 100 |
| Weight (Unpacked) | 530 g |
