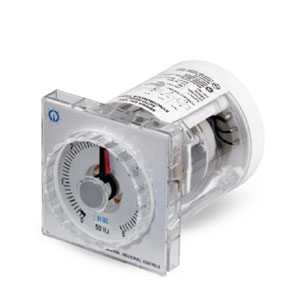

GIC BJ42B2 Timer
The GIC BJ42B2 Timers offers 95% to 105% frequency, -5°C to 45°C operating Temperature, IP20 degree of protection , 96 X 96 X 100 Dimensions (W X H X D). Manufactured by GIC under the GIC Timers category, this model belongs to the GIC DT Series.
| Brand | GIC |
| Product Type | Timers |
| Model Number | BJ42B2 |
GIC BJ42B2 Timer – Technical Specifications
| Specification | Value |
|---|---|
| Timing range | 0.15s to 120h |
| Timing Ranges(SR) & (MR) | 3.0 - 60 SEC |
| Voltage | 240V AC 50 Hz |
| Delay | With ‘NO VOLT’ |
| Mounting | Base Mounting |
| Contact | 1 Inst + 2 Del C/O |
| Supply Variation | - 20% to +10% |
| Frequency | 95% to 105% |
| Power consumption | 10 VAC |
| Output Contact | 1 Instant + 1 Delayed / 1 Instant + 2 Delayed (Optional) |
| Contact rating | 6A (resistive) @ 250 VAC |
| Switching Frequency | 3000 operations/hr. (Max.) |
| Repeat Accuracy | ± 0.5% of Full Scale Range @ Constant Frequency |
| Operating Temperature | -5°C to 45°C |
| Enclosure | Conforms to IP30 - IS 13947. |
| Degree of Protection | IP20 |
| Terminal Connection | 1– 2.5 mm² solid/stranded. |
| Dimensions (W X H X D) in mm | 96 X 96 X 100 |
| Weight (Unpacked) | 530 g |
