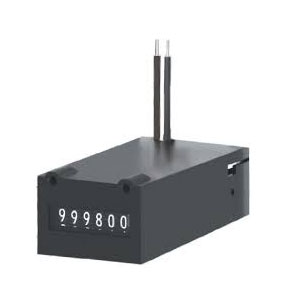

GIC 6ND21A Digital Counters
The GIC 6ND21A Digital Counters offers 12 VDC Supply voltage, -5 C to +50 C (Non-Freezing, Non Condensing) operating temperature, IP 40 Front Panel degree of protection , Panel, Bail, Base & Behind Panel mounting. Manufactured by GIC under the GIC Digital Counters category, this model belongs to the GIC ZH Series.
| Brand | GIC |
| Product Type | Digital Counters |
| Model Number | 6ND21A |
GIC 6ND21A Digital Counters β Technical Specifications
| Specification | Value |
|---|---|
| Supply Voltage | 12 VDC |
| Supply Variation | 10% to -10% |
| Power Consumption (Max.) | 2 W |
| Figure | 6 Digit, White on Black, (2.0 X 4.0 mm) Height |
| Maximum Range | 999999 |
| Speed | 10 Hz Maximum (600 Counts / Minute) |
| Pulse Width | 50 ms minimum |
| Counting Method | One Pulse - One count (energizing - 1/2 count, de-energized - 1/2 count) |
| Operating Temperature | -5 C to +50 C (Non-Freezing, Non Condensing) |
| Humidity (Non Condensing) | 45 to 85% (Rh) (Non-Freezing, Non Condensing) |
| Degree of Protection | IP 40 Front Panel |
| Terminals | 22 AWG, 105 C wire leads, 280 mm long / 2 way Terminal Strip |
| Mounting | Panel, Bail, Base & Behind Panel |
| Weight (unpacked) | 113 g |
