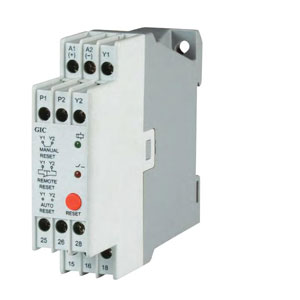

GIC 4431AD1 Liquid Level Controller
The GIC 4431AD1 Level Monitoring offers 415VAC, +/-20% supply voltage, Relay ON/OFF output control mode, -10°C to +60°C operating temperature, Base/DIN Rail mounting. Manufactured by GIC under the GIC Level Monitoring category, this model belongs to the GIC AD Series.
| Brand | GIC |
| Product Type | Liquid Level Controller |
| Model Number | 4431AD1 |
GIC 4431AD1 Liquid Level Controller – Technical Specifications
| Specification | Value |
|---|---|
| Supply Voltage | 415VAC, +/-20% |
| Frequency | 47Hz - 63Hz |
| Power Consumption (Max.) | 3VA |
| Conductive Sensor Probes | Stainless Steel SS304, 3 or 6 Nos |
| Sensor Length | 10 cm |
| Control Action Modes | Only Draining, Only Filling, Draining & Filling Simultaneous (One Tank or Two tanks) |
| Sensitivity | 1K to 200 K Ohm (Potentiometer adjustable) |
| Sensor Voltage & Current | 12 Vp-p, 100 Hz,< 1 mA |
| Sensor cable | Cable gauge (Min):0.5 sq mm Tin coated, Cable dia(Min):1.5mm, Max Cable Length-1000m (For set value < 50%), Max Cable Length-300m (For set value 100%), Max capacitances of wire- 80 nF / km |
| Settable ON & OFF Delay Time | 0.5 sec to 10 sec |
| Manual Start Switch | If Lower tank water level is greater than Low level & upper tank water level is below High level then by pressing a switch Relay can be switched ON manually. |
| Output Control Mode | Relay ON/OFF |
| Contact Ratings | 1 C/O,8A@250VAC,Resistive,Terminal 15-Pole, Terminal 16-NC,Terminal 18-NO |
| Utilization Category | AC-15: Rated Voltage (Ue):120/240V, Rated Current(Ie): 3.0/1.5A DC-13: Rated Voltage (Ue):24/125/250V, Rated Current(Ie): 2.0/0.22/0.1A |
| Electrical Life | 1 x 10^5 Operations |
| Mechanical Life | 1 x 10^7 Operations |
| LED Indication | GREEN LED: Power ON, RED LED : Relay Output ON |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -10°C to +70°C |
| Relative Humidity | 5 to 95 % RH (non condensing) |
| Mounting | Base/DIN Rail |
| Dimension (W x H x D) (in mm) | 36 X 90 X 65 |
| Weight (unpacked) | 235 g (Controller), 45 g (Sensor) |
