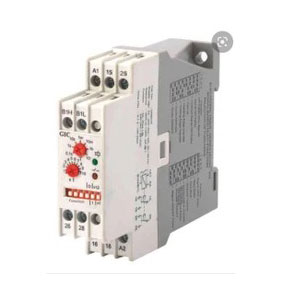

GIC 2ANDT0 Timer
The GIC 2ANDT0 Timers offers 50/60 Hz frequency, -15° C to +60° C operating Temperature, IP 20 for Terminals, IP 40 for Enclosure
degree of protection , 22.5 X 75 X 100.5 Dimensions (W X H X D). Manufactured by GIC under the GIC Timers category, this model belongs to the GIC DT Series.
| Brand | GIC |
| Product Type | Timers |
| Model Number | 2ANDT0 |
GIC 2ANDT0 Timer – Technical Specifications
| Specification | Value |
|---|---|
| Timer Description | Signal Based Multi Function |
| Timing range | 0.1s to 10h |
| Mounting | Base / DIN Rail |
| Supply Voltage (Un) | 24 - 240 VAC/DC |
| Supply Variation | - 20% to +10% |
| Frequency | 50/60 Hz |
| Power consumption | 3 VA |
| Relay Output | 1 C/O (SPDT) |
| Contact rating | 5A @ 240 VAC / 28 VDC (Resistive) |
| Electrical Life | 1×10^5 |
| Mechanical Life | 1×10^7 |
| Repeat Accuracy | ± 1% |
| Reset Time | 100 ms |
| Setting Accuracy | ± 5% of Full scale |
| Operating Temperature | -15° C to +60° C |
| Storage Temperature | -20° C to +80° C |
| Humidity | 95% (Rh) |
| Utilization Category AC - 15 | Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3.0/1.5 A |
| Utilization Category DC - 13 | Rated Voltage (Ue): 24/125/250 V, Rated Current (Ie): 2.0/0.22/0.1 A |
| LED Indication | Green LED Power ON Red LED Relay ON |
| Enclosure | Flame Retardant UL94-V0 |
| Degree of Protection | IP 20 for Terminals, IP 40 for Enclosure |
| Dimensions (W X H X D) in mm | 22.5 X 75 X 100.5 |
| Weight (Unpacked) | 130 g |
