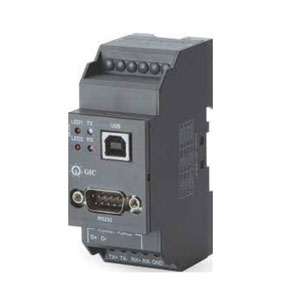

GIC 28A11A0 Interface Converter
The GIC 28A11A0 Interface Converter offers 36 X 90 X 52.3 dimension (W x H x D) (in mm), 0 C To + 60 C operating temperature, IP 20 for Terminals, IP 40 for Enclosure degree of protection , Base / DIN rail mounting. Manufactured by GIC under the GIC Interface Converter category, this model belongs to the GIC Converter Series.
| Brand | GIC |
| Product Tpe | Interface Converter |
| Model Number | 28A11A0 |
GIC 28A11A0 Interface Converter β Technical Specifications
| Specification | Value |
|---|---|
| Version | USB Specification 2.0 compliant |
| Speed | 12 Mbps |
| RS232 | TX, RX,GND |
| RS485 | D+, D-, GND |
| RS422 | TX+, TX-, RX+, RX-, GND |
| Connector | RS232 - D Type 9 Pin Male Compatible with PC, RS485, RS422- Screw Terminals |
| Serial line Protection | Internal 15kV ESD protection |
| Isolation | 1500 V Galvanic Isolation |
| LED Indication | TX, RX, Communication Mode Indication. |
| Power Requirements | USB BUS Powered |
| Operating Temperature | 0 C To + 60 C |
| Storage Temperature | -20 C To + 70 C |
| Humidity | 5% (Rh) to 95% (Rh) |
| Enclosure | Flame Retardant UL 94-V0 |
| Dimension (W x H x D) (in mm) | 36 X 90 X 52.3 |
| Weight (unpacked) Approx. | 100 g |
| Mounting | Base / DIN rail |
| Degree of Protection | IP 20 for Terminals, IP 40 for Enclosure |
