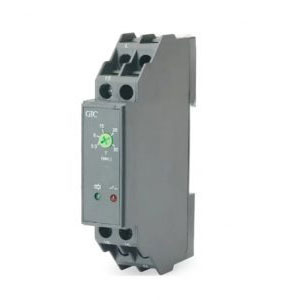

GIC 17UDT0 Timer
The GIC 17UDT0 Timers offers 50 Hz frequency, -10°C to +55°C operating Temperature, IP 20 for Terminals, IP 40 for Enclosure degree of protection , 17.5 X 58.5 X 90 Dimensions (W X H X D). Manufactured by GIC under the GIC Timers category, this model belongs to the GIC DT Series.
| Brand | GIC |
| Product Type | Timers |
| Model Number | 17UDT0 |
GIC 17UDT0 Timer – Technical Specifications
| Specification | Value |
|---|---|
| Timer Description | Brown Out Timer |
| Timing range | 0.3s to 30s |
| Mounting | Base / DIN Rail |
| Supply Voltage (Un) | 160-250 VAC |
| Supply Variation | -30% to +10% |
| Frequency | 50 Hz |
| Power consumption | 10 VA |
| Relay Output | 1 C/O |
| Contact rating | 5A @ 240 VAC / 28 VDC (Resistive) |
| Electrical Life | 1×10^5 |
| Mechanical Life | 1×10^7 |
| Repeat Accuracy | ± 1% |
| Setting Accuracy | ± 10% @ 30s & ± 20% @ 0.3s |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -15°C to +60°C |
| Humidity | 80% (Rh) |
| Utilization Category AC - 15 | Rated Voltage (Ue): 240/125 VAC, Rated Current (Ie): 1.3/2.5 A |
| Utilization Category DC - 13 | Rated Voltage (Ue): 24/125/250 V, Rated Current (Ie): 2.0/0.22/0.1 A |
| LED Indication | Green Healthy, Red Relay ON |
| Enclosure | Flame Retardant UL94-V0 |
| Degree of Protection | IP 20 for Terminals, IP 40 for Enclosure |
| Dimensions (W X H X D) in mm | 17.5 X 58.5 X 90 |
| Weight (Unpacked) | 75 gm |
