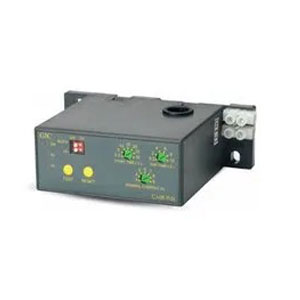

GIC 17A122CB0 Current Monitoring
The GIC 17A122CB0 Current Monitoring offers 220 - 415 VAC (3 Phase, 3 Wire) supply voltage, 1 C/O relay output, Base Mounting mounting, IP 20 for Enclosure degree of protection. Manufactured by GIC under the GIC Current Monitoring category, this model belongs to the GIC current Series.
| Brand | GIC |
| Product Type | Current Monitoring |
| Model Number | 17A122CB0 |
GIC 17A122CB0 Current Monitoring โ Technical Specifications
| Specification | Value |
|---|---|
| Supply Voltage | 220 - 415 VAC (3 Phase, 3 Wire) |
| Supply Variation | -20% to +15% |
| Frequency | 50/60 Hz |
| Power Consumption (Max.) | 12 VA |
| Trip Type | Inverse Time |
| Tripping Class | 10A, 10, 20, 30 |
| Current Ranges | 3 - 9 A |
| Thermal Memory | Yes |
| Underload | 40% to 90% |
| Trip Time | < 4sec after starting |
| Number of In-Built CTโs | 2 |
| Reset Mode | Auto, Manual |
| Test Function | Yes |
| Delay Time | As per trip class |
| Auto Reset Time | 3-15 min (As per trip class) |
| ON Delay | 450 ms ( ยฑ50ms ) |
| Setting Accuracy | ยฑ 5% |
| Repeat Accuracy | ยฑ 2% |
| Relay Output | 1 C/O |
| Contact Rating | 5A @ 240 VAC (Resistive) |
| Electrical Life | 1 x 10^5 |
| Mechanical Life | 1 x 10^7 |
| Utilization Category AC - 15 | Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3.0/1.5 A |
| LED Indications | Separate indications for Phase Asymmetry, Phase Loss & Phase Sequence / Reverse, Power ON, Underload & Overload |
| Operating Temperature | - 10 C to +60 C |
| Storage Temperature | - 25 C to +70 C |
| Humidity (Non Condensing) | 95% (Rh) |
| Enclosure | Flame Retardant UL94-V0 |
| Dimension (W x H x D) (in mm) | 110.8 X 36.5 X 76.8 |
| Weight (unpacked) Approx. | 210 g |
| Mounting | Base Mounting |
| Degree of Protection | IP 20 for Enclosure |
