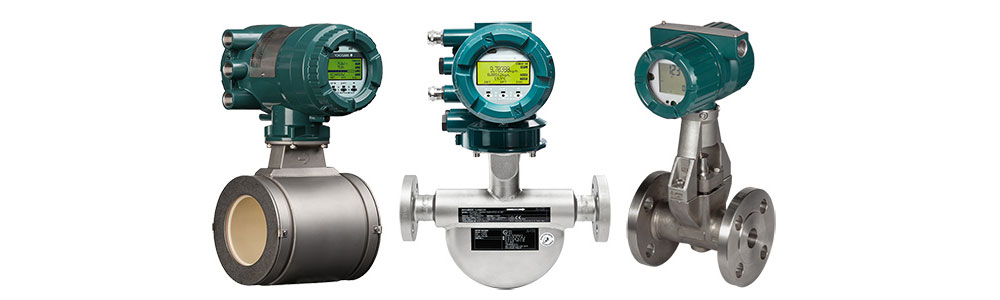

A
Accuracy
Accuracy refers to how close a flow sensor’s measurements are to the true or expected values. It tells us if the sensor provides reliable and precise flow rate data. A high level of accuracy means the sensor’s measurements match the actual flow. While lower accuracy may introduce some level of error or deviation. It is crucial to have accurate flow measurements to ensure proper monitoring and control of fluid processes.
Ambient Conditions
Ambient conditions refer to the surrounding environment where a flow sensor operates. This includes factors like temperature, humidity, pressure, and presence of any contaminants. Ambient conditions can affect the performance and accuracy of the flow sensor.
Extreme temperatures or humidity can affect sensor components and fluid properties, leading to inaccuracies. Properly managing ambient conditions ensures reliable flow measurements. Maintaining suitable conditions minimizes impact on sensor accuracy and reliability.
Ambient Temperature
Ambient temperature refers to the temperature of the surrounding environment where a flow sensor operates. It affects the performance and reliability of the sensor.
Extreme temperatures affect fluid properties and sensor components, causing inaccuracies. Maintaining suitable ambient temperature ensures accurate and consistent flow measurements.
Analog Output
Analog output is an electrical signal generated by a flow sensor that represents the measured flow rate. It provides continuous and proportional information. Analog output is usually in the form of voltage or current. This signal can be easily interfaced with other devices or systems for monitoring, control, or further processing. Analog output provides real-time flow rate data for integration into applications.
C
Calibration
Calibration refers to the process of adjusting and verifying the accuracy of a flow meter. It involves comparing the meter’s measurements against a known reference or standard.
Calibration ensures that the flow meter provides reliable and accurate readings over time. Periodic calibration maintains flow meter performance and measurement integrity.
Connection
Connection refers to the physical attachment or linkage between a flow meter and the fluid system. It involves installing the flow meter into the pipeline or tubing to establish a secure and leak-free connection.
A good connection is essential to maintain the accuracy and reliability of flow measurements. As any leaks or improper fittings can affect the flow meter’s performance and introduce errors.
Coriolis Flow Meter
A Coriolis flow meter is a type of flow meter that measures flow based on the Coriolis effect. It utilizes the principle of fluid mass motion in a rotating system. Fluid flow through oscillating tubes causes a phase shift for accurate flow rate measurement in Coriolis flow meters. Coriolis flow meters offer high accuracy and simultaneous measurement of many fluid properties.
D
Diagnostic Functions
Diagnostic functions identify issues and ensure reliable flow meter performance. Proactive monitoring and troubleshooting enable enhanced reliability and performance.
Differential Pressure Flow Meter
Differential pressure flow meter measures flow via pressure difference across a constriction. Pressure directly relates to flow, ensuring accurate calculations. This versatile flow meter finds common use across industries and with various fluid types due to its simplicity and wide rangeability.
Digital Output
Digital output refers to the format in which a flow meter provides its measurement data. The digital output represents the flow rate in binary code for easy processing. It offers advantages like higher accuracy and noise immunity. Integration with control systems and data logging is simplified.
F
Flow Direction
Flow direction refers to the path in which a fluid moves within a flow system. It indicates whether the fluid is flowing in a forward or reverse direction.
Flow direction knowledge is vital for flow meter installation and operation. Accurate measurements depend on proper alignment with the intended flow direction. Ensuring correct flow meter alignment guarantees reliable and precise flow measurements.
Flow Profile
Flow profile refers to the distribution of fluid velocity across the cross-section of a pipe or channel. It describes how the fluid moves and distributes itself within the flow area. A uniform flow profile indicates an even velocity distribution. While a non-uniform profile may have variations in velocity.
Flow profile affects the accuracy of flow measurements, especially for certain flow meter technologies. Achieving a well-developed and uniform flow profile is desirable for obtaining precise flow rate data.
Flow Rate
Flow rate refers to the quantity of fluid passing through a specific point per unit of time. It is a measure of how much fluid volume or mass is flowing within a given duration. Flow rate is typically expressed in units such as liters per minute (LPM) or cubic meters per hour (m³/h).
Accurate flow rate measurements are crucial for process control and optimization. Flow rate monitoring is vital in industries like water management and manufacturing. Precise flow measurements are essential for energy-related applications. Flow meters are used to measure and monitor flow rates, providing valuable data for various purposes.
Flow Sensitivity
Flow sensitivity refers to the ability of a flow sensor or flow meter to detect and measure small changes in flow rates. It indicates the level of responsiveness and precision of the sensor in capturing variations in flow.
High flow sensitivity detects subtle flow changes for precise control and monitoring. Flow sensitivity is crucial for selecting suitable flow sensors. Capturing desired flow range and reliable measurements depend on flow sensitivity.
Flow Switch
A flow switch is a device that detects the presence or absence of fluid flow in a pipeline or system. It functions as a simple on/off switch based on the flow conditions. When the flow rate exceeds or falls below a predetermined threshold.
Flow switch triggers equipment activation or deactivation for safety and control. Used in various industries to maintain proper flow conditions. Ensures equipment protection and process control through flow monitoring.
Flow Velocity
Flow velocity refers to the speed at which a fluid moves within a flow system. It represents the rate of fluid displacement per unit of time and is measured in meters per second (m/s) or feet per second (ft/s).
Flow velocity reveals fluid flow dynamics and characteristics, affecting pressure, turbulence, and energy. Accurate measurement crucial for fluid system design and optimization. Flow meters enable precise flow velocity measurement and corresponding flow rate data.
G
Gasket Material
Gasket material refers to the material used to create a seal between two surfaces in a flow system. It acts as a barrier to prevent fluid leakage. Common gasket materials include rubber, silicone, and various types of metals. Gasket material choice is based on fluid, temperature, pressure, and compatibility. Appropriate selection ensures reliable, leak-free seals for efficient flow systems.
H
Housing Material
Housing material refers to the material used to construct the outer casing or enclosure of a flow sensor or flow meter. It provides protection and support to the internal components. Common housing materials include plastics, stainless steel, and aluminum.
Housing material selection depends on application, fluid properties, and durability needs. Suitable material ensures sensor longevity, corrosion resistance, and compatibility with conditions.
I
Installation
Process of setting up flow sensor in the flow system. Proper positioning, connection, and securing ensure accurate flow measurements. Consider flow direction, straight pipe, and alignment during installation. Following guidelines and best practices ensures optimal performance and longevity.
Installation Length from Contact Surface
Distance between flow sensor and pipe/channel inner surface. Maintaining specific lengths ensures accurate flow measurements. Deviation from recommended length impacts sensor performance and introduces errors. Following the manufacturer’s guidelines minimizes flow disturbances and optimizes accuracy.
IP Rating
Standard classification indicates protection against solids and liquids. Two digits represent protection against particles and liquids, respectively. A higher digit indicates greater protection level. Used to ensure flow sensors’ suitability for specific environmental conditions. Provides reliable operation in industrial settings with dust, moisture, or contaminants.
L
Linearity
Flow sensor’s ability to maintain linear relationship between flow rate and output signal. Output signal changes proportionally with flow rate variations. High linearity indicates accurate representation of flow rate changes. Important for precise and consistent flow measurements across the measurement range.
Maintaining linearity is important for obtaining precise and consistent flow measurements. Nonlinearities can introduce measurement errors and impact the reliability of flow data. Ensuring high linearity is crucial for applications where accurate flow rate information is essential for process control or analysis.
M
Magnetic Flow Meter
A magnetic flow meter is a type of flow meter that uses Faraday’s law of electromagnetic induction to measure the flow rate of conductive fluids. It consists of a pipe with electrodes and a magnetic field. As the fluid flows through the pipe, it generates a voltage proportional to its velocity. It is allowing for accurate flow measurements.
Maintenance
Maintenance refers to the routine activities performed to keep a flow meter or any equipment in optimal working condition. It includes tasks like cleaning, calibration, inspection, and repair. Regular maintenance ensures the flow meter operates, minimizes measurement errors, and extends its lifespan. Following manufacturer guidelines and scheduling preventive maintenance activities. are crucial for effective flow meter maintenance.
Mass Flow Rate
Mass flow rate is the measurement of the amount of fluid passing through a specific point per unit of time. It represents the mass of the fluid, rather than the volume, and is typically measured in kilograms per second (kg/s) or pounds per hour (lb/h). Mass flow rate provides valuable information in applications where the density or composition of the fluid is important. Such as in chemical processes, gas flow monitoring, or custody transfer operations.
Measurement Principle
Measurement principle: Underlying principle is used by the flow meter to determine the flow rate. Different flow meter types utilize various principles like the Coriolis effect, differential pressure, thermal dispersion, ultrasonic, or electromagnetic induction. Understanding the principle aids in selecting a suitable flow meter for applications. Consider flow range, accuracy requirements, fluid properties, and operational conditions.
Media Temperature
Media temperature refers to the temperature of the fluid being measured by a flow meter. It is a crucial parameter that can influence the accuracy and performance of the flow meter. Temperature changes can affect the fluid’s properties, such as density and viscosity. Which in turn can impact flow measurements. Flow meters are typically designed to handle specific temperature ranges, and exceed these limits. It can lead to inaccurate readings or damage to the flow meter. Proper consideration and monitoring of media temperature are necessary for obtaining reliable flow measurements.
O
Operating Pressure
Operating pressure refers to the pressure at which a flow meter or system operates. It represents the force exerted by the fluid on the flow meter components.
Operating pressure understanding ensures flow meter compatibility and performance integrity. Flow meter selection based on operating pressure crucial for accurate measurements.
Operating Temperature
Operating temperature refers to the temperature range at which a flow meter or system operates. It indicates the temperature conditions the flow meter can withstand without affecting its performance or causing damage.
Different flow meters are designed to operate within specific temperature ranges. Operating within temperature limits ensures accurate flow meter measurements. It is preventing issues like thermal expansion or contraction that affect performance.
Operating Voltage (Ub)
Operating voltage (Ub) refers to the voltage level required to power a flow meter or sensor. Operating voltage powers flow meter components and generates necessary output signals. Correct voltage crucial for functionality and accuracy of flow meter. Specified operating voltage ensures reliable operation and prevents damage. Using the correct voltage maintains accuracy and prevents measurement errors.
Output Signal
Output signal refers to the electrical signal generated by a flow meter to indicate the measured flow rate. Common output signals include analog signals (e.g., voltage or current) or digital signals (e.g., pulses or data communication).
The output signal provides a representation of the flow rate that can be used for monitoring, control, or further processing. Understanding the type of output signal and its compatibility with the receiving system or equipment. It is important for integrating the flow meter into a larger system and extracting the desired flow data effectively.
P
Paddle Wheel Flow Sensor
A paddle wheel flow sensor is a type of flow sensor that uses a rotating paddle wheel to measure the flow rate. As fluid passes through the sensor, the paddle wheel rotates, and the rotational speed is proportional to the flow rate. Paddle wheel flow sensors measure low to moderate flow rates accurately. Commonly used in water treatment, irrigation, and HVAC systems.
Positive Displacement Flow Meter
A positive displacement flow meter is a type of flow meter that measures flow rate by trapping and counting discrete volumes of fluid. It operates on the principle of filling and emptying a known volume of fluid with each cycle. Positive displacement flow meters are known for their high accuracy and are commonly used in applications. That requires precise measurements of low to medium flow rates, such as in fuel dispensing or custody transfer operations.
Pressure Loss
Pressure loss refers to the decrease in pressure that occurs as fluid flows through a flow meter or system. It is caused by frictional resistance, changes in velocity, or flow obstructions. Pressure loss can impact system efficiency and affect the accuracy of flow measurements. Minimizing pressure loss crucial for optimal system performance and accuracy. Low-pressure loss flow meters or proper sizing mitigate pressure loss. Maintaining desired flow conditions achieved through pressure loss mitigation strategies.
Pressure Rating Max.
The maximum pressure rating represents the flow meter’s safe pressure threshold. Designed to handle the highest pressure without leakage, distortion, or damage.
Selecting a flow meter with a matching or exceeding pressure rating is crucial. Ensures reliability and safety under operating conditions for accurate measurements.
Process Connection
Process connection refers to the physical interface or connection point between a flow meter and the process or fluid system. It involves the mechanical attachment of the flow meter to the pipeline or equipment. Proper process connection ensures a secure and leak-free integration of the flow meter into the system. Various types of process connections are available, including threaded, flanged, or welded connections.
Appropriate process connection selection ensures reliable flow measurement and system performance. Consider factors like pipe size, pressure rating, and fluid compatibility. Choosing a suitable process connections crucial for accurate and consistent flow readings. Ensures optimal integration of flow meter into the system.
Process Connection Material
Process connection material is compatible with the measured fluid and conditions. It Withstands process conditions and provides a reliable, leak-free connection. Materials like stainless steel, brass, or plastics are commonly used. Appropriate material choice ensures flow meter longevity, integrity, and accuracy.
R
Rangeability
Rangeability refers to the ratio between the maximum and minimum flow rates that a flow meter can accurately measure. It indicates the flow range over which the flow meter can provide reliable and precise readings. High rangeability allows accurate measurement of low and high flow rates. Consider rangeability when selecting a flow meter for desired flow range. Ensures accurate measurements across the entire operating range. Flexible application suitability is achieved through appropriate rangeability consideration.
Repeatability
Repeatability ensures a consistent output signal for repeated measurements under the same conditions. Flow meter’s precision and consistency in reproducing the same results. High repeatability means minimal variation in measurements under repeated flow conditions. Crucial for precise flow monitoring and control, ensuring consistency and reliability.
S
Sensor Element
The sensor element refers to the component within a flow meter that directly interacts with the fluid and measures the flow rate. It detects the fluid’s motion, changes in pressure, or other parameters relevant to flow measurement.
Different flow meter technologies use different types of sensor elements. Such as turbines, Coriolis tubes, thermal sensors, or electromagnetic coils. The selection of the appropriate sensor element depends on factors like the fluid properties, flow range, accuracy requirements, and operational conditions. The sensor element is critical for the flow meter’s performance and accuracy.
Switching Output
Switching output refers to a digital signal or output provided by a flow meter that indicates a specific flow condition or threshold. It functions as an on/off signal or a binary signal. The switching output is triggered when the flow rate exceeds or falls below a predetermined value or set point.
Switching outputs are commonly used for process control and activating equipment. Flow switches and flow meters with relay outputs utilize switching outputs. Enables flow detection, alarms, and effective flow control implementation. Provides simple and effective means of flow monitoring and control.
T
Thermal Flow Meter
A thermal flow meter measures the flow rate by sensing the heat transfer between a heated element and the flowing fluid. The flow rate affects the heat transfer, allowing accurate flow measurements. Thermal flow meters are commonly used for gases and can provide reliable measurements even for low flow rates.
Turbine Flow Sensor
A turbine flow sensor uses a rotating turbine or rotor to measure the flow rate. The fluid flow causes the turbine to spin, and the rotational speed is proportional to the flow rate. Turbine flow sensors are versatile, widely used, and offer high accuracy for both liquid and gas flow measurements.
Turndown Ratio
The turndown ratio refers to the range of flow rates that a flow meter can accurately measure. It is the ratio between the maximum and minimum flow rates. A higher turndown ratio indicates a wider range of flow rates. That can be measured by the flow meter, offering flexibility in various applications.
U
Ultrasonic Flow Meter
An ultrasonic flow meter measures the flow rate using ultrasonic waves. It sends ultrasonic pulses through the fluid and measures the time it takes for the pulses to travel, providing accurate flow measurements. Ultrasonic flow meters are non-intrusive, suitable for various fluid types, and offer high accuracy and versatility.
V
Variable Area Flow Meter (Rotameter)
A variable area flow meter, also known as a rotameter, measures the flow rate based on the position of a float within a tapered tube. The flow rate causes the float to move, and the position indicates the flow rate. Variable area flow meters are simple, cost-effective, and commonly used for liquids and gases in a wide range of industries.
Viscosity
Viscosity refers to the measure of a fluid’s resistance to flow. It determines how easily a fluid flows and its internal friction. High-viscosity fluids like honey have a thick consistency and flow slowly, while low-viscosity fluids like water flow more easily. Viscosity affects flow meter selection and accuracy, as different flow meter technologies handle various viscosity ranges.
Volumetric Flow Rate
Volumetric flow rate measures the volume of fluid passing through a point per unit of time. It quantifies the amount of fluid flowing and is typically expressed in liters per minute (LPM) or cubic meters per hour (m³/h). Volumetric flow rate is essential for applications where knowing the quantity of fluid transported or processed is crucial.
Vortex Flow Meter
A vortex flow meter measures the flow rate based on the principle of fluid-induced oscillations known as von Kármán vortex street. As fluid flows past an obstruction in the meter, it generates vortices that are detected and counted to determine the flow rate. Vortex flow meters are suitable for liquids, gases, and steam, providing accurate and reliable flow measurements in various industries.
W
Wetted Parts
Wetted parts refer to the components of a flow meter that come into direct contact with the flowing fluid. These parts include the sensor element, pipe, electrodes, or any other material exposed to the fluid. Choice of wetted parts material is crucial for compatibility and accurate measurements. Prevents corrosion, contamination, and adverse reactions in the fluid. Suitable wetted parts selection extends flow meter’s lifespan and accuracy. Maintains integrity of the fluid system for reliable flow measurements.
Conclusion
