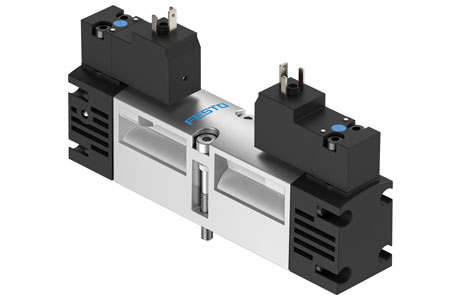

Festo VSVA-BK-B52-D-D1-1B2 Solenoid Valve
The Festo VSVA-BK-B52-D-D1-1B2 Solenoid Valve offers Electric actuation, Sub-base size 1 to ISO 5599-1 working port, andPiston slide with sealing ring design. Manufactured by Festo under the Festo Solenoid Valve category, this model belongs to the VSVA Series.
| Brand | Festo |
| Product Type | Solenoid Valve |
| Product | VSVA-BK-B52-D-D1-1B2 |
Festo VSVA-BK-B52-D-D1-1B2 Solenoid Valve โ Technical Specifications
| Specification | Value |
|---|---|
| Valve function | 5/2 double solenoid |
| Type of actuation | Electric |
| Valve size | 42 |
| pneumatic working port | Sub-base size 1 to ISO 5599-1 |
| Operating voltage | 24V DC |
| Operating pressure | 3; 8 |
| Design | Piston slide with sealing ring |
| Degree of protection | IP65; With plug socket; To IEC 60529 |
| Nominal size | 6.3 |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Conforms to standard | ISO 5599-1 |
| Manual override | Detenting; Non-detenting |
| Type of piloting | Pilot actuated |
| Pilot air supply | Internal |
| Flow direction | Non-reversible |
| Signal status display | With accessories |
| Duty cycle | 100% |
| Characteristic coil data | 24 V DC: 3.3 W |
| Permissible voltage fluctuations | #ERROR! |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Media temperature | -5; 50 |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5; 50 |
| Max. tightening torque for valve mounting | 5 |
| Product weight | 400 |
| Electrical connection | Type B; To industry standard (11 mm) |
| Type of mounting | On sub-base |
| Material seals | HNBR; NBR |
| Material housing | Wrought aluminium alloy |
| Material screws | Galvanised steel |
| Nominal operating voltage DC | 24 |
