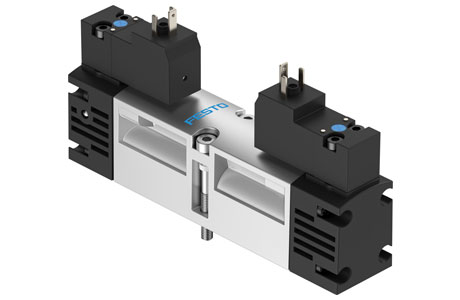

Festo VSVA-B-P53U-H-A2-2AC1 Solenoid Valve
The Festo VSVA-B-P53U-H-A2-2AC1 Solenoid Valve offers Electric actuation, Sub-base size 18 mm to ISO 15407-1; Sub-base size 02 to VDMA 24563; G1/8 working port, andPiston gate valve design. Manufactured by Festo under the Festo Solenoid Valve category, this model belongs to the VSVA Series.
| Brand | Festo |
| Product Type | Solenoid Valve |
| Product | VSVA-B-P53U-H-A2-2AC1 |
Festo VSVA-B-P53U-H-A2-2AC1 Solenoid Valve โ Technical Specifications
| Specification | Value |
|---|---|
| Valve function | 5/3-way, pressurised |
| Type of actuation | Electric |
| Valve size | 18 |
| pneumatic working port | Sub-base size 18 mm to ISO 15407-1; Sub-base size 02 to VDMA 24563; G1/8 |
| Operating voltage | 110V AC |
| Operating pressure | 3; 10 |
| Design | Piston gate valve |
| Type of reset | Mechanical spring |
| Degree of protection | IP65; NEMA 4 |
| Nominal size | 5 |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Conforms to standard | ISO 15407-1; VDMA 24563 |
| Manual override | Non-detenting |
| Type of piloting | Pilot actuated |
| Pilot air supply | Internal |
| Flow direction | Non-reversible |
| Signal status display | LED |
| Switching time off | 30 |
| Switching time on | 18 |
| Duty cycle | 100% |
| Characteristic coil data | 110 V AC: 50/60 Hz, pick-up power 2.9 VA, holding power 2.1 VA |
| Permissible voltage fluctuations | -15%/+10% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -5; 50 |
| Relative air humidity | 0 - 90% |
| Sound pressure level | 85 |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5; 50 |
| Max. tightening torque for valve mounting | 1 |
| Product weight | 174 |
| Electrical connection | Type C; With protective earth conductor; To DIN EN 175301-803 |
| Type of mounting | On sub-base |
| Auxiliary pilot air port 12 | Sub-base size 18 mm to ISO 15407-1 |
| Auxiliary pilot air port 14 | Sub-base size 18 mm to ISO 15407-1 |
| Material seals | HNBR; NBR |
| Material housing | Die-cast aluminium |
| Material screws | Steel; Galvanised |
