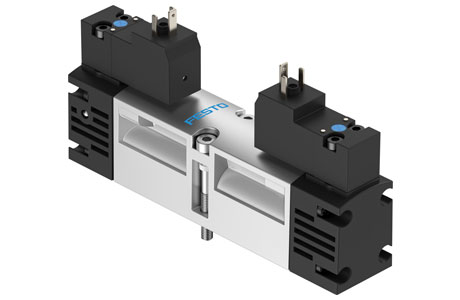

Festo VSVA-B-M52-MZ-A1-1C1-APC Solenoid Valve
| Brand | Festo |
| Product Type | Solenoid Valve |
| Model Number | VSVA-B-M52-MZ-A1-1C1-APC |
Festo VSVA-B-M52-MZ-A1-1C1-APC Solenoid Valve β Technical Specifications
| Specification | Value |
|---|
| Valve function | 5/2-way, monostable |
| Type of actuation | Electric |
| pneumatic working port | Sub-base size 26 mm to ISO 15407-1; Sub-base size 01 to VDMA 24563; G1/4 |
| Operating voltage | 24V DC |
| Operating pressure | -0.9; 16 |
| Design | Piston gate valve |
| Type of reset | Mechanical spring |
| Degree of protection | IP65; NEMA 4 |
| Nominal size | 9 |
| Exhaust-air function | With flow control option; Via throttle plate; Via individual sub-base |
| Sealing principle | Soft |
| Mounting position | optional |
| Type of piloting | Pilot actuated |
| Pilot air supply | External |
| Flow direction | optional |
| Signal status display | With accessories |
| Characteristic coil data | 24 V DC: 1.8 W |
| Permissible voltage fluctuations | -15%/+10% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Ambient temperature | -5; 50 |
| Max. tightening torque for valve mounting | 1.8; 2.2 |
| Product weight | 332 |
| Electrical connection | Type C; To EN 175301-803; Without protective earth conductor |
| Type of mounting | On sub-base |
| Material housing | Die-cast aluminium; PA |
| Material screws | Galvanised steel |
