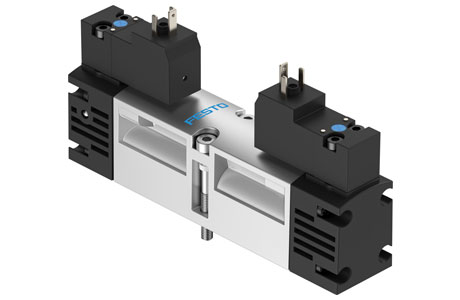

Festo VSVA Solenoid Valve
The Festo VSVA Solenoid Valve offers Electric actuation, Sub-base size 18 mm to ISO 15407-1; Sub-base size 26 mm to ISO 15407-1; Sub-base size 01 to VDMA 24563; Sub-base size 02 to VDMA 24563; G1/8; G1/4 working port, andPiston gate valve design. Manufactured by Festo under the Festo Solenoid Valve category, this model belongs to the VSVA Series.
| Brand | Festo |
| Product Type | Solenoid Valve |
| Product | VSVA |
Festo VSVA Solenoid Valve – Technical Specifications
| Specification | Value |
|---|---|
| Valve function | 2x2/2-way, monostable, closed; 2x3/2-way, monostable, closed; 2x3/2-way, open, monostable; 2x3/2-way, open/closed, monostable; 5/2 double solenoid; 5/2-way, bistable, dominant; 5/2-way, monostable; 5/3-way, pressurised; 5/3 exhausted; 5/3 closed |
| Type of actuation | Electric |
| Valve size | 18 |
| pneumatic working port | Sub-base size 18 mm to ISO 15407-1; Sub-base size 26 mm to ISO 15407-1; Sub-base size 01 to VDMA 24563; Sub-base size 02 to VDMA 24563; G1/8; G1/4 |
| Operating voltage | 110V AC; 12V DC; 230V AC; 24V AC; 24V DC |
| Operating pressure | -0.9; 16 |
| Design | Piston gate valve |
| Type of reset | Mechanical spring; Pneumatic spring |
| Degree of protection | IP65; NEMA 4 |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Conforms to standard | ISO 15407-1; VDMA 24563 |
| Type of piloting | Pilot actuated |
| Signal status display | LED |
| Duty cycle | 100% |
| Permissible voltage fluctuations | -15%/+10% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -5; 50 |
| Relative air humidity | 0 - 90% |
| Sound pressure level | 85 |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5; 50 |
| Type of mounting | On sub-base |
| Material seals | HNBR; NBR |
| Material housing | Die-cast aluminium |
| Material screws | Steel; Galvanised |
