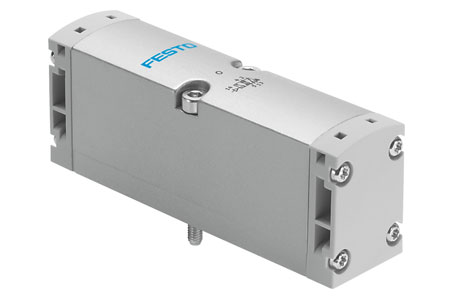

Festo VSPA-B-T32H-A2 Pneumatic Valve
The Festo VSPA-B-T32H-A2 Pneumatic Valve offers Pneumatic actuation, Sub-base size 18 mm to ISO 15407-1; Sub-base size 02 to VDMA 24563; G1/8 working port, and5 design. Manufactured by Festo under the Festo Pneumatic Valve category, this model belongs to the VSPA Series.
| Brand | Festo |
| Product Type | Pneumatic Valve |
| Product | VSPA-B-T32H-A2 |
Festo VSPA-B-T32H-A2 Pneumatic Valve โ Technical Specifications
| Specification | Value |
|---|---|
| Valve function | 2x3/2-way, open/closed, monostable |
| Type of actuation | Pneumatic |
| Construction width | 18 |
| pneumatic working port | Sub-base size 18 mm to ISO 15407-1; Sub-base size 02 to VDMA 24563; G1/8 |
| Operating pressure | 2; 10 |
| Design | Piston gate valve |
| Type of reset | Pneumatic spring |
| Nominal size | 5 |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Conforms to standard | ISO 15407-1; VDMA 24563 |
| Type of piloting | Direct |
| Flow direction | Non-reversible |
| Pilot pressure | 2; 10 |
| Flow rate of valve | 600 |
| Flow rate of valve on individual sub-base | 450 |
| Flow rate of pneumatically interlinked valve | 400 |
| Switching time off | 15 |
| Switching time on | 10 |
| Explosion protection | Zone 2 (ATEX); Zone 22 (ATEX) |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -10; 60 |
| Relative air humidity | 0 - 90% |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10; 60 |
| Max. tightening torque for valve mounting | 0.9; 1.1 |
| Product weight | 80 |
| Material seals | NBR |
| Material housing | Die-cast aluminium |
| Material screws | Steel; Galvanised |
