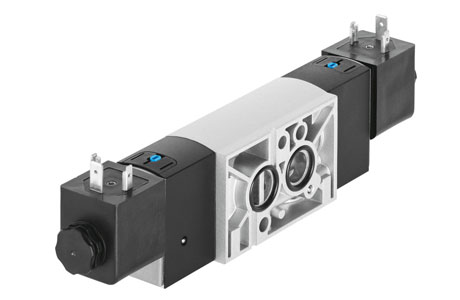

Festo VSNC-F-P53E-M-G14-P2 Pneumatic Valve
The Festo VSNC-F-P53E-M-G14-P2 Pneumatic Actuator offers Electric actuation, NAMUR port pattern working port, andWith through-hole mounting. Manufactured by Festo under the Festo Pneumatic Actuator category, this model belongs to the VSNC Series.
| Brand | Festo |
| Product Type | Solenoid valve |
| Product | VSNC-F-P53E-M-G14-P2 |
Festo VSNC-F-P53E-M-G14-P2 Pneumatic Valve โ Technical Specifications
| Specification | Value |
|---|---|
| Valve function | 5/3 exhausted |
| Type of actuation | Electric |
| Construction width | 32 |
| Standard nominal flow rate (standardised to DIN 1343) | 1050 |
| pneumatic working port | NAMUR port pattern |
| Operating voltage | Via solenoid coil, must be ordered separately |
| Operating pressure | 3; 8 |
| Design | Piston gate valve |
| Type of reset | Mechanical spring |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | None |
| Type of piloting | Pilot actuated |
| Pilot air supply | Internal |
| Flow direction | Non-reversible |
| Switching time off | 9 |
| Switching time on | 6 |
| Duty cycle | 100% |
| Characteristic coil data | See solenoid coil, to be ordered separately |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Media temperature | -20; 60 |
| Ambient temperature | -20; 60 |
| Product weight | 428 |
| Type of mounting | With through-hole |
| Breather connection | Not ducted |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | NAMUR port pattern |
| Pneumatic connection, port 3 | G1/4 |
| Pneumatic connection, port 4 | NAMUR port pattern |
| Pneumatic connection, port 5 | G1/4 |
| Material seals | NBR |
| Material housing | Wrought aluminium alloy |
| Material screws | Galvanised steel |
