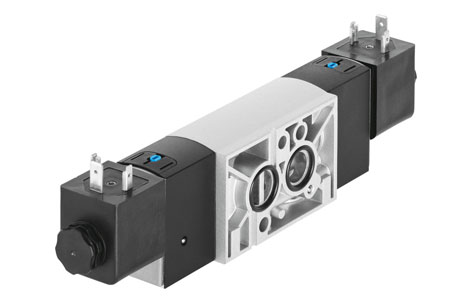

Festo VSNC-F-B52-D-G14-FN Pneumatic Valve

Name: Festo VSNC-F-B52-D-G14-FN 577268
Brand: Festo
SKU: VSNC-F-B52-D-G14-FN
Rating: 4.7 (4 reviews)

The Festo VSNC-F-B52-D-G14-FN Pneumatic Actuator offers Electric actuation, NAMUR port pattern working port, andWith through-hole mounting. Manufactured by Festo under the Festo Pneumatic Actuator category, this model belongs to the VSNC Series.

Datasheet

Festo VSNC-F-B52-D-G14-FN Pneumatic Valve – Technical Specifications

Specification	Value
Valve function	5/2 double solenoid
Type of actuation	Electric
Construction width	32
Standard nominal flow rate (standardised to DIN 1343)	1350
pneumatic working port	NAMUR port pattern
Operating voltage	Via solenoid coil, must be ordered separately
Operating pressure	1.5; 8
Design	Piston gate valve
Exhaust-air function	With flow control option
Sealing principle	Soft
Mounting position	optional
Media temperature	-20; 60
Ambient temperature	-20; 60
Product weight	455
Type of mounting	With through-hole
Material seals	NBR
Material housing	Wrought aluminium alloy
Material screws	Galvanised steel
