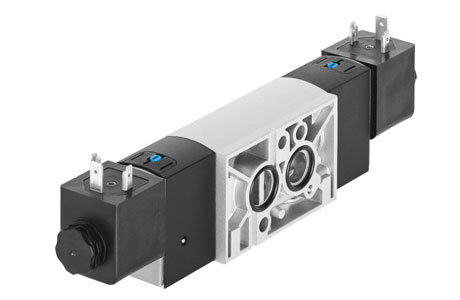

Festo VSNC Pneumatic Valve
The Festo VSNC Pneumatic Actuator offers Electric actuation, NAMUR port pattern working port, andWith through-hole mounting. Manufactured by Festo under the Festo Pneumatic Actuator category, this model belongs to the VSNC Series.
| Brand | Festo |
| Product Type | Solenoid valve |
| Product | VSNC |
Festo VSNC Pneumatic Valve โ Technical Specifications
| Specification | Value |
|---|---|
| Valve function | 5/2 double solenoid; 5/2-way or 3/2-way, convertible; 5/3-way, pressurised; 5/3 exhausted; 5/3 closed |
| Type of actuation | Electric |
| Construction width | 32 |
| Standard nominal flow rate (standardised to DIN 1343) | 800; 1350 |
| pneumatic working port | NAMUR port pattern |
| Operating voltage | 110V AC; 120V AC; 12V DC; 230V AC; 240V AC; 24V AC; 24V DC; 48V AC; 48V DC; Via solenoid coil, must be ordered separately |
| Operating pressure | 1.5; 10 |
| Design | Piston gate valve; Poppet seat |
| Type of reset | Mechanical spring |
| Degree of protection | IP65; IP66; IP67; With plug socket; To IEC 60529 |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | Detenting; None; Non-detenting; Covered |
| Type of piloting | Pilot actuated |
| Pilot air supply | Internal |
| Flow direction | Non-reversible |
| Standard nominal flow rate, exhaust return 4->3 | 110 |
| Switching time off | 6; 120 |
| Switching time on | 4; 35 |
| Duty cycle | 100% |
| Characteristic coil data | 110/120 V AC: 50/60 Hz, pick-up power 2.7 VA, holding power 1.9 VA; 110/120 V AC: 50/60 Hz, pick-up power 4.4 VA, holding power 3.3 VA; 110/120 V AC: 50/60 Hz, pick-up power 5.2 VA, holding power 3.1 VA; 110/120 V AC: 50/60 Hz, pick-up power 6.9 VA, holding power 3.1 VA; 110 V AC: 50/60 Hz, pick-up power 7.7 VA, holding power 3.8 VA; 120 V AC: 60 Hz, pick-up power 10.0 VA, holding power 6.8 VA; 12 V DC: 2.8 W; 12 V DC: 3.4 W; 230/240 V AC: 50/60 Hz, pick-up power 3.9 VA, holding power 2.8 VA; 230/240 V AC: 50/60 Hz, pick-up power 5.8 VA, holding power 4.6 VA; 230 V AC: 50/60 Hz, pick-up power 10.0 VA, holding power 6.0 VA; 230 V AC: 50/60 Hz, pick-up power 11.5 VA, holding power 8.0 VA; 230 V AC: 50/60 Hz, pick-up power 6.2 VA, holding power 3.7 VA; 230 V AC: 50/60 Hz, pick-up power 6.9 VA, holding power 4.1 VA; 24 V DC: 0.8 W; 24 V DC: 2.1 W; 24 V DC: 2.7 W; 24 V DC: 3.3 W; 24 V DC: 4.6 W; 24 V AC: 50/60 Hz, pick-up power 2.5 VA, holding power 1.7 VA; 24 V AC: 50/60 Hz, pick-up power 3.9 VA, holding power 2.6 VA; 24 V DC: 0.7 W; 24 V DC: 1.2 W; 24 V DC: 2.6 W; 48 V AC: 50/60 Hz, pick-up power 2.5 VA, holding power 1.7 VA; 48 V AC: 50/60 Hz, pick-up power 3.9 VA, holding power 2.7 VA; 48 V DC: 2.8 W; 48 V DC: 3.4 W; See solenoid coil, to be ordered separately |
| Permissible voltage fluctuations | #ERROR! |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L; VDMA24364 zone III |
| Media temperature | -20; 60 |
| Ambient temperature | -20; 60 |
| Product weight | 335; 685 |
| Electrical connection | 3-pin; Type A; Type B; Cable connector M20x1.5; M12x1, A-coded to EN 61076-2-101; Plugs; To EN 175301-803; To industry standard (11 mm) |
| Type of mounting | With through-hole |
| Breather connection | Not ducted |
| Pneumatic connection, port 1 | G1/4; 1/4 NPT; QS-6; QS-8; QS-10; QS-1/4; QS-5/16; QS-3/8 |
| Pneumatic connection, port 2 | NAMUR port pattern |
| Pneumatic connection, port 3 | G1/4; 1/4 NPT; QS-6; QS-8; QS-10; QS-1/4; QS-5/16; QS-3/8 |
| Pneumatic connection, port 4 | NAMUR port pattern |
| Pneumatic connection, port 5 | G1/4; 1/4 NPT; QS-6; QS-8; QS-10; QS-5/16; QS-1/4; QS-3/8 |
| Material seals | NBR |
| Material housing | Wrought aluminium alloy |
| Material screws | Galvanised steel |
