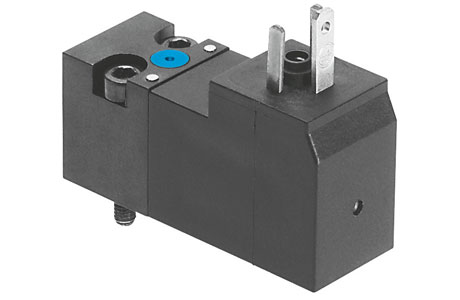

Festo VSCS-B-M32C-MT-WB-F8 Pneumatic Valve
The Festo VSCS-B-M32C-MT-WB-F8 Solenoid Valve offers Electric actuation, Sub-base size 30 mm to ISO 15218 working port, andSub-base valve design. Manufactured by Festo under the Festo Solenoid Valve category, this model belongs to the VSCS Series.
| Brand | Festo |
| Product Type | Solenoid Valve |
| Product | VSCS-B-M32C-MT-WB-F8 |
Festo VSCS-B-M32C-MT-WB-F8 Pneumatic Valve โ Technical Specifications
| Specification | Value |
|---|---|
| Valve function | 3/2-way, closed, monostable |
| Type of actuation | Electric |
| Construction width | 30 |
| Standard nominal flow rate (standardised to DIN 1343) | 34 |
| pneumatic working port | Sub-base size 30 mm to ISO 15218 |
| Operating pressure | 29; 145 |
| Design | Sub-base valve |
| Type of reset | Mechanical spring |
| Degree of protection | IP65 |
| Sealing principle | Soft |
| Mounting position | optional |
| Conforms to standard | ISO 15218 |
| Manual override | Detenting via accessory; Non-detenting |
| Type of piloting | Direct |
| Flow direction | Non-reversible |
| Max. switching frequency | 5 |
| Switching time off | 8 |
| Switching time on | 8 |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 3000 |
| Max. negative test pulse with 1 signal | 3400 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -10; 50 |
| Ambient temperature | -10; 50 |
| Type of mounting | CNOMO |
| Material seals | NBR |
