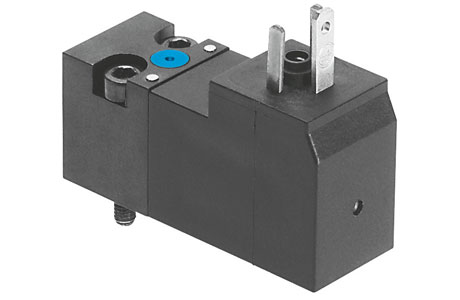

Festo VSCS-B-M32-MD-WA-1R3-8 Pneumatic Valve
The Festo VSCS-B-M32-MD-WA-1R3-8 Solenoid Valve offers Electric actuation, Sub-base size 15 mm to ISO 15218 working port, and design. Manufactured by Festo under the Festo Solenoid Valve category, this model belongs to the VSCS Series.
| Brand | Festo |
| Product Type | Solenoid Valve |
| Product | VSCS-B-M32-MD-WA-1R3-8 |
Festo VSCS-B-M32-MD-WA-1R3-8 Pneumatic Valve โ Technical Specifications
| Specification | Value |
|---|---|
| Valve function | 3/2-way, closed, monostable |
| Type of actuation | Electric |
| Construction width | 15 |
| Standard nominal flow rate (standardised to DIN 1343) | 13.5 |
| pneumatic working port | Sub-base size 15 mm to ISO 15218 |
| Operating pressure | 21.75; 116 |
| Type of reset | Mechanical spring |
| Degree of protection | IP65 |
| Sealing principle | Soft |
| Mounting position | optional |
| Conforms to standard | ISO 15218 |
| Manual override | Detenting; Non-detenting |
| Type of piloting | Direct |
| Flow direction | Non-reversible |
| Switching time off | 6 |
| Switching time on | 8 |
| Duty cycle | 100% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Vibration resistance | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-C1-L |
| Media temperature | -5; 50 |
| Ambient temperature | -5; 50 |
| Material seals | NBR |
| Operating voltage | 24V DC |
| Characteristic coil data | 24 V DC: 1.3 W |
| Electrical connection | M12x1; To IEC 61076-2-101 |
