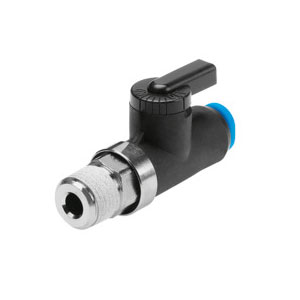

HGL-M5-QS-4 - 530038 - Festo Stop Valves
HGL-M5-QS-4 530038 Festo Stop Valves
| Brand | Festo |
| Product Type | Stop Valves |
| Product | HGL-M5-QS-4 |
HGL-M5-QS-4 530038 Festo Stop Valves Technical Specifications
| Specification | Value |
|---|---|
| Valve function | Piloted non-return function |
| Pneumatic connection, port 1 | QS-4 |
| Pneumatic connection, port 2 | M5 |
| Pilot air port 21 | QS-4 |
| Type of actuation | Pneumatic |
| Type of mounting | Screw-in; Via male thread |
| Operating pressure | 0.5; 10 |
| Pilot pressure | 29; 145 |
| Ambient temperature | -10; 60 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Maritime classification | See certificate |
| Mounting position | optional |
| Symbol | 991456 |
| Standard flow rate 1->2 (6-0) | 200 |
| Standard nominal flow rate 1->2 (6-5) | 130 |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 |
| Storage temperature | -10; 60 |
| Media temperature | -10; 60 |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Nominal torque | 1.25 |
| Tolerance for nominal tightening torque | ยฑ 10% |
| Product weight | 21 |
| Note on materials | RoHS-compliant |
| Material seals | NBR |
| Material hollow bolt | Wrought aluminium alloy; Anodised |
| Material release ring | POM |
| Material non-return collar | NBR |
| Material swivel fitting | Die-cast zinc |
