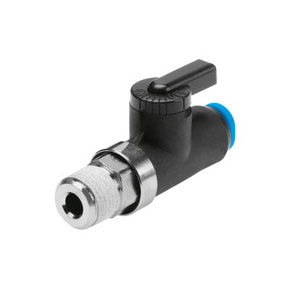

H-M5 - 3671 - Festo Stop Valves
H-M5 3671 Festo Stop Valves
| Brand | Festo |
| Product Type | Stop Valves |
| Product | H-M5 |
H-M5 3671 Festo Stop Valves Technical Specifications
| Specification | Value |
|---|
| Valve function | Non-return function |
| Pneumatic connection, port 1 | M5 |
| Pneumatic connection, port 2 | M5 |
| Type of mounting | In-line installation |
| Operating pressure | 0.4; 8 |
| Ambient temperature | -10; 60 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Symbol | 991455 |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Media temperature | -10; 60 |
| Note on materials | RoHS-compliant |
| Material seals | NBR |
