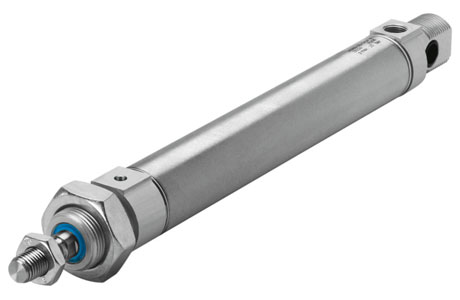

Festo ESNU-50 Pneumatic Cylinder
The Festo ESNU-50 Pneumatic Cylinder offers Pushing; Single-acting operation, G1/4 connection, 50 mm diameter, and Piston; Piston rod; Cylinder barrel. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the ESNU Series.
| Brand | Festo |
| Product Type | ISO Cylinder |
| Product | ESNU-50 |
Festo ESNU-50 Pneumatic Cylinder โ Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 1; 50 |
| Piston diameter | 50 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Design | Piston; Piston rod; Cylinder barrel |
| Position detection | Via proximity switch |
| Variants | Increased chemical resistance; Extended male piston rod thread; Piston rod with female thread; Custom thread on the piston rod; Piston rod with male thread shortened at one end; Extended piston rod; Axial supply port; Uniform, slow movement; Low friction; Piston rod at one end |
| Operating pressure | 1.2; 10 |
| Mode of operation | Pushing; Single-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20; 120 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 976; 1011 |
| Moving mass for 0 mm stroke | 413 |
| Additional moving mass per 10 mm stroke | 25 |
| Basic weight for 0 mm stroke | 1087 |
| Additional weight per 10 mm stroke | 40 |
| Type of mounting | With accessories |
| Pneumatic connection | G1/4 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | High-alloy stainless steel |
| Material seals | NBR; TPE-U(PU) |
