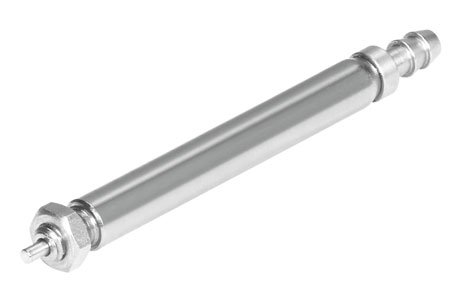

Festo EG-6-25-PK-3 Pneumatic Cylinder
The Festo EG-6-25-PK-3 Pneumatic Cylinder offers Pushing; Single-acting operation, PK-3 connection, 6 mm diameter, andPiston; Piston rod; Cylinder barrel. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the EG-PK Series.
| Brand | Festo |
| Product Type | Round Cylinders |
| Product | EG-6-25-PK-3 |
Festo EG-6-25-PK-3 Pneumatic Cylinder โ Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 25 |
| Piston diameter | 6 mm |
| Cushioning | On one side; Not adjustable |
| Mounting position | optional |
| Design | Piston; Piston rod; Cylinder barrel |
| Position detection | Without |
| Symbol | 991200 |
| Variants | Piston rod at one end |
| Operating pressure | 3; 7 |
| Mode of operation | Pushing; Single-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 5; 60 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 11.8 |
| Theoretical min. spring return force | 2.5 |
| Theoretical max. spring return force | 5.2 |
| Product weight | 24 |
| Type of mounting | Via lock nut |
| Pneumatic connection | PK-3 |
| Note on materials | RoHS-compliant |
| Material cover | High-alloy steel |
| Material seals | NBR |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | High-alloy stainless steel |
