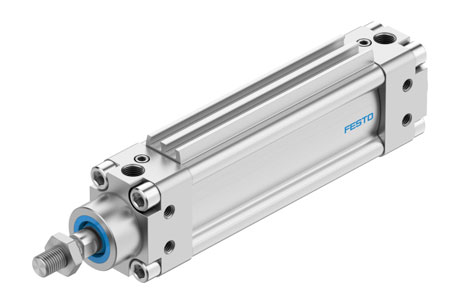

Festo DZH-63-PPV-A-S6 Pneumatic Cylinder
The Festo DZH-63-PPV-A-S6 Pneumatic Cylinder offers M16x1.5 rod thread, FPM connection, 63 mm; Equivalent diameter diameter, andPiston; Piston rod. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the DZH Series.
| Brand | Festo |
| Product Type | Flat Type |
| Product | DZH-63-PPV-A-S6 |
Festo DZH-63-PPV-A-S6 Pneumatic Cylinder – Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 1; 1000 |
| Piston diameter | 63 mm; Equivalent diameter |
| Piston rod thread | M16x1.5 |
| Torsional backlash at piston rod +/- | 0.67 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Mode of operation | Double-acting |
| Design | Piston; Piston rod |
| Position detection | Via proximity switch |
| Symbol | 991235 |
| Variants | Heat-resistant seals max. 120°C |
| Protection against torque/guide | Oval piston |
| Operating pressure | 0.6; 10 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 0; 120 |
| Cushioning length | 23 |
| Basic weight for 0 mm stroke | 1847 |
| Type of mounting | Either:; Via female thread; With accessories |
| Pneumatic connection | G3/8 |
| Note on materials | RoHS-compliant |
| Material cover | Aluminium |
| Material seals | FPM |
| Material housing | Aluminium |
| Material piston seal | FPM |
| Material piston rod | High-alloy steel |
