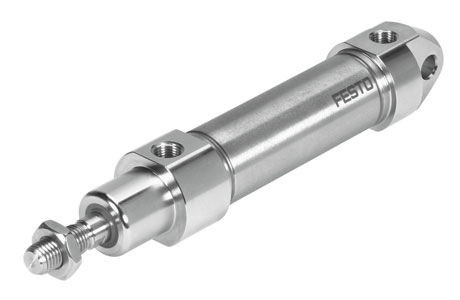

Festo DSNU-S-25-40-P-A-MX Pneumatic Cylinder
The Festo DSNU-S-25-40-P-A-MX Pneumatic Cylinder offers M10x1.25 rod thread, piston rod end, 25 mm diameter, andPiston; Piston rod; Cylinder barrel. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the CRDSNU Series.
| Brand | Festo |
| Product Type | ISO Cylinder |
| Product | DSNU-S-25-40-P-A-MX |
Festo DSNU-S-25-40-P-A-MX Pneumatic Cylinder โ Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 40 |
| Piston diameter | 25 mm |
| Piston rod thread | M10x1.25 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Design | Piston; Piston rod; Cylinder barrel |
| Position detection | Via proximity switch |
| Operating pressure | 0.6; 10 |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -20; 80 |
| Basic weight for 0 mm stroke | 180.2 |
| Additional weight per 10 mm stroke | 11 |
| Type of mounting | With accessories |
| Pneumatic connection | G1/8 |
