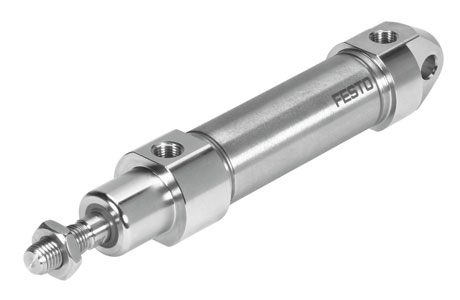

Home Brand Festo DSNU-S DSNU-S-25-125-PPS-A-MX Festo DSNU-S-25-125-PPS-A-MX Round Cylinder The Festo DSNU-S-25-125-PPS-A-MX Round Cylinder offers M10x1.25 rod thread, Double-acting mode of operation, 25 mm diameter, and Piston; Piston rod; Cylinder barrel. Manufactured by Festo under the Festo Round Cylinder category, this model belongs to the DSNU-S Series.
Brand Festo Product Type Round Cylinder Product DSNU-S-25-125-PPS-A-MX
Festo DSNU-S-25-125-PPS-A-MX Round Cylinder โ Technical Specifications Specification Value Stroke 125 Piston diameter 25 mm Piston rod thread M10x1.25 Cushioning Self-adjusting pneumatic end-position cushioning Mounting position optional Design Piston; Piston rod; Cylinder barrel Position detection Via proximity switch Symbol 991217 Operating pressure 0.6; 10 Mode of operation Double-acting Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Cleanroom class Class 6 according to ISO 14644-1 Ambient temperature -20; 80 Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 247.4 Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 294.5 Moving mass for 0 mm stroke 63.6 Additional moving mass per 10 mm stroke 6 Basic weight for 0 mm stroke 180.2 Additional weight per 10 mm stroke 11 Type of mounting With accessories Pneumatic connection G1/8 Note on materials RoHS-compliant Material cover Anodised wrought aluminium alloy Material seals TPE-U(PU) Material piston rod High-alloy stainless steel Material cylinder barrel High-alloy stainless steel Cushioning length 17
