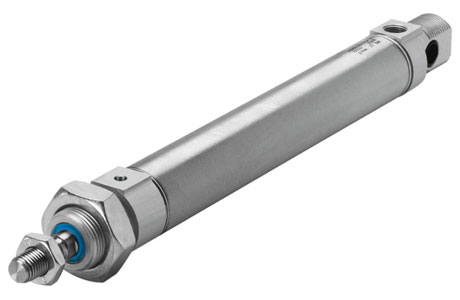

Home Brand Festo DSNU-S DSNU-S-16- - Festo DSNU-S-16- - Round Cylinder The Festo DSNU-S-16- - Round Cylinder offers Double-acting mode of operation, 16 mm diameter, and Piston; Piston rod; Cylinder barrel. Manufactured by Festo under the Festo Round Cylinder category, this model belongs to the DSNU-S Series.
Brand Festo Product Type Round Cylinder Product DSNU-S-16- -
Festo DSNU-S-16- - Round Cylinder โ Technical Specifications Specification Value Stroke 1; 200 Piston diameter 16 mm Cushioning Elastic cushioning rings/plates at both ends; Self-adjusting pneumatic end-position cushioning Mounting position optional Design Piston; Piston rod; Cylinder barrel Position detection Via proximity switch Symbol 991217 Operating pressure 0.8; 10 Mode of operation Double-acting Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Ambient temperature -20; 80 Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 103.7 Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 120.6 Moving mass for 0 mm stroke 18.3 Additional moving mass per 10 mm stroke 2 Basic weight for 0 mm stroke 48.9 Additional weight per 10 mm stroke 4.8 Type of mounting With accessories Pneumatic connection M5 Note on materials RoHS-compliant Material cover Anodised wrought aluminium alloy Material seals TPE-U(PU) Material piston rod High-alloy stainless steel Material cylinder barrel High-alloy stainless steel Cushioning length 12
