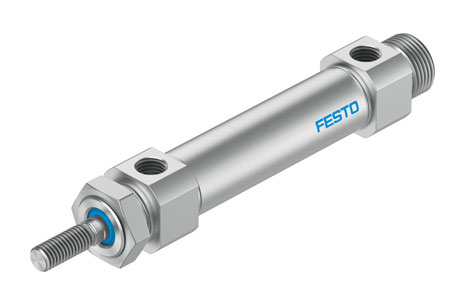

Festo DSNU-S-16-25-P-A-MQ Round Cylinder
The Festo DSNU-S-16-25-P-A-MQ Round Cylinder offers M6 rod thread, Double-acting mode of operation, 16 mm diameter, and Piston; Piston rod; Cylinder barrel. Manufactured by Festo under the Festo Round Cylinder category, this model belongs to the DSNU-S Series.
| Brand | Festo |
| Product Type | Round Cylinder |
| Product | DSNU-S-16-25-P-A-MQ |
Festo DSNU-S-16-25-P-A-MQ Round Cylinder โ Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 25 |
| Piston diameter | 16 mm |
| Piston rod thread | M6 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Design | Piston; Piston rod; Cylinder barrel |
| Position detection | Via proximity switch |
| Symbol | 991217 |
| Operating pressure | 0.8; 10 |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20; 80 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 103.7 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 120.6 |
| Moving mass for 0 mm stroke | 18.3 |
| Additional moving mass per 10 mm stroke | 2 |
| Basic weight for 0 mm stroke | 48.9 |
| Additional weight per 10 mm stroke | 4.8 |
| Type of mounting | With accessories |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material cover | Anodised wrought aluminium alloy |
| Material seals | TPE-U(PU) |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | High-alloy stainless steel |
