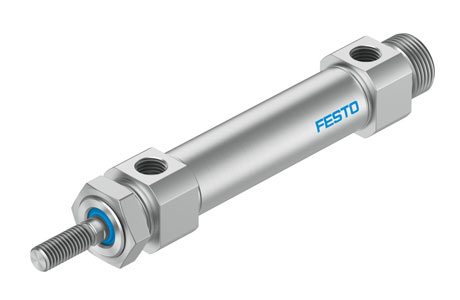

Home Brand Festo DSNU-S DSNU-S-12-100-P-A-MQ Festo DSNU-S-12-100-P-A-MQ Round Cylinder The Festo DSNU-S-12-100-P-A-MQ Round Cylinder offers M6 rod thread, Double-acting mode of operation, 12 mm diameter, and Piston; Piston rod; Cylinder barrel. Manufactured by Festo under the Festo Round Cylinder category, this model belongs to the DSNU-S Series.
Brand Festo Product Type Round Cylinder Product DSNU-S-12-100-P-A-MQ
Festo DSNU-S-12-100-P-A-MQ Round Cylinder โ Technical Specifications Specification Value Stroke 100 Piston diameter 12 mm Piston rod thread M6 Cushioning Elastic cushioning rings/plates at both ends Mounting position optional Design Piston; Piston rod; Cylinder barrel Position detection Via proximity switch Symbol 991217 Operating pressure 1.5; 10 Mode of operation Double-acting Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Cleanroom class Class 6 according to ISO 14644-1 Ambient temperature -20; 80 Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 50.9 Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 67.9 Moving mass for 0 mm stroke 16.2 Additional moving mass per 10 mm stroke 2 Basic weight for 0 mm stroke 35.9 Additional weight per 10 mm stroke 4.2 Type of mounting With accessories Pneumatic connection M5 Note on materials RoHS-compliant Material cover Anodised wrought aluminium alloy Material seals TPE-U(PU) Material piston rod High-alloy stainless steel Material cylinder barrel High-alloy stainless steel
