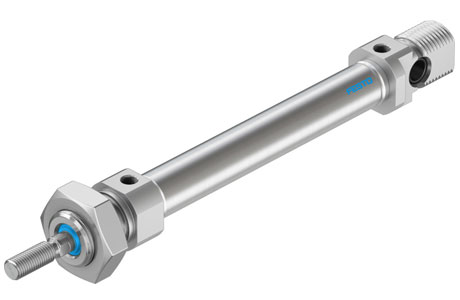

Festo DSNU-16-70-P-A Round Cylinder
The Festo DSNU-16-70-P-A Round Cylinder offers M6 rod thread, Male thread piston rod end, 16 mm diameter, andPiston; Piston rod; Cylinder barrel. Manufactured by Festo under the Festo Round Cylinder category, this model belongs to the DSNU Series.
| Brand | Festo |
| Product Type | ISO Cylinder |
| Product | DSNU-16-70-P-A |
Festo DSNU-16-70-P-A Round Cylinder – Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 70 |
| Piston diameter | 16 mm |
| Piston rod thread | M6 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Conforms to standard | CETOP RP 52 P; ISO 6432 |
| Design | Piston; Piston rod; Cylinder barrel |
| Piston-rod end | Male thread |
| Position detection | Via proximity switch |
| Variants | Piston rod at one end |
| Symbol | 991217 |
| Operating pressure | 1; 10 |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20; 80 |
| Impact energy in end positions | 0.15 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 103.7 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 120.6 |
| Moving mass for 0 mm stroke | 23 |
| Additional moving mass per 10 mm stroke | 2 |
| Basic weight for 0 mm stroke | 89.9 |
| Additional weight per 10 mm stroke | 4.6 |
| Type of mounting | With accessories |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy; Colourless anodised |
| Material seals | NBR; TPE-U(PU) |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | High-alloy stainless steel |
Festo – A Global Name in Industrial Automation
Festo is a world-renowned leader in pneumatic and automation technology. With decades of engineering expertise and a strong presence across India, Festo is trusted by industries for delivering precise, durable, and innovative solutions. From basic pneumatic components to advanced automation systems, Festo helps factories run smoother, faster, and smarter. Their cylinders, valves, and actuators are known for reliability and easy integration into both legacy and modern setups.
Technical Specifications of DSNU-16-70-P-A
The DSNU-16-70-P-A is a double-acting round pneumatic cylinder built as per ISO 6432 standards, ensuring universal compatibility and standardised dimensions. It features a 16 mm piston diameter and 70 mm stroke, providing effective force output for light-to-medium actuation tasks. With elastic cushioning rings/plates at both ends, it minimizes impact during piston return and advance, promoting longer equipment life and quieter operation.
Made with high-alloy stainless steel for the piston rod and anodised aluminium alloy for the body, this cylinder resists corrosion (CRC class 2), making it suitable for cleanroom and general industrial environments. It operates between 1 to 10 bar pressure, handles ambient temperatures from -20°C to 80°C, and is RoHS-compliant. It supports M5 pneumatic connections, optional mounting accessories, and proximity switch compatibility for stroke position detection in automation systems.
Application Use Cases – DSNU-12-70-P-A
The DSNU-12-70-P-A is ideal for applications that require compact yet precise movement. Its slim profile makes it perfect for equipment with limited space—such as electronics assembly lines, conveyor-based sorting machines, or fixture clamping systems. The 70 mm stroke offers enough travel for simple pushing, lifting, or positioning tasks without adding bulk.
In practical use, this model performs well in test setups, light packaging machinery, or automated part-feeding systems where repeated motion is required at high speed but with low to moderate force. Maintenance teams value it for its ISO standard design, which makes replacement and integration easier. And for engineers and students, it's a great example of how clean, responsive pneumatic actuation can be applied to solve real industrial problems efficiently.
Whether you're designing a new system or maintaining an existing one, the DSNU series—especially the 12-70-P-A—offers a great balance between performance, space efficiency, and reliability
