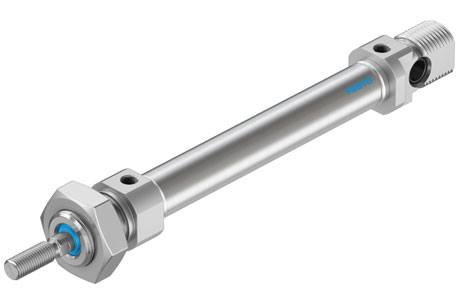

Home Brands Festo Round Cylinder DSNU-16-125-PPS-A Festo DSNU-16-125-PPS-A Round Cylinder The Festo DSNU-16-125-PPS-A Round Cylinder offers M6 rod thread, Male thread piston rod end, 16 mm diameter, andPiston; Piston rod; Cylinder barrel. Manufactured by Festo under the Festo Round Cylinder category, this model belongs to the DSNU Series.
Home Festo Product Type Round Cylinder Model Number DSNU-16-125-PPS-A
Festo DSNU-16-125-PPS-A Round Cylinder β Technical Specifications Specification Value Stroke 125 Piston diameter 16 mm Piston rod thread M6 Cushioning Self-adjusting pneumatic end-position cushioning Mounting position optional Conforms to standard CETOP RP 52 P; ISO 6432 Design Piston; Piston rod; Cylinder barrel Piston-rod end Male thread Position detection Via proximity switch Variants Piston rod at one end Mode of operation Double-acting Type of mounting With accessories Pneumatic connection M5 Material cover Wrought aluminium alloy; Colourless anodised Material piston rod High-alloy stainless steel Material cylinder barrel High-alloy stainless steel
