Festo DSNU-12- -P-A Round Cylinder

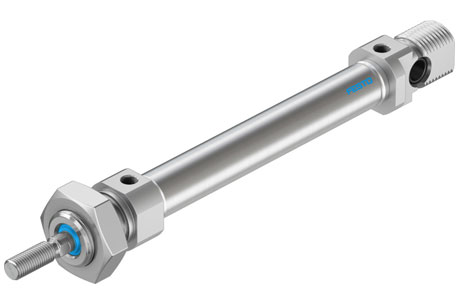

The Festo DSNU-12- -P-A Round Cylinder offers M6 rod thread, Male thread piston rod end, 12 mm diameter, andPiston; Piston rod; Cylinder barrel. Manufactured by Festo under the Festo Round Cylinder category, this model belongs to the DSNU Series.
| Brand | Festo |
| Product Type | ISO Cylinder |
| Product | DSNU-12- -P-A |
Festo DSNU-12- -P-A Round Cylinder – Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 1; 200 |
| Piston diameter | 12 mm |
| Piston rod thread | M6 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Conforms to standard | CETOP RP 52 P; ISO 6432 |
| Design | Piston; Piston rod; Cylinder barrel |
| Piston-rod end | Male thread |
| Position detection | Via proximity switch |
| Variants | Piston rod at one end |
| Operating pressure | 1.5; 10 |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20; 80 |
| Impact energy in end positions | 0.07 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 50.9 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 67.9 |
| Moving mass for 0 mm stroke | 18.5 |
| Additional moving mass per 10 mm stroke | 2 |
| Basic weight for 0 mm stroke | 75 |
| Additional weight per 10 mm stroke | 4 |
| Type of mounting | With accessories |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy; Colourless anodised |
| Material seals | NBR; TPE-U(PU) |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | High-alloy stainless steel |
Festo – A Brand Trusted by Engineers Worldwide
Festo is a globally recognized name in factory automation and pneumatic solutions. Known for their engineering precision and reliability, Festo components are used by top industries and OEMs across India. Whether in automotive, electronics, food processing, or pharmaceutical industries, Festo's cylinders and valves are valued for their long life, consistency, and ease of integration. For Indian maintenance engineers, technicians, and engineering students, Festo is not just a brand—it’s a benchmark of quality and performance.
Technical Overview of DSNU-12-P-A (14324)
The Festo DSNU-12-P-A is a compact round cylinder with a 12 mm piston diameter and a stroke range from 1 mm to 200 mm, making it suitable for short and medium-stroke operations. It features a male-threaded piston rod (M6), double-acting motion, and elastic cushioning on both ends to reduce impact and wear.
Designed in compliance with ISO 6432 and CETOP RP 52 P, this cylinder ensures compatibility with standard mounting accessories. It operates on compressed air (ISO 8573-1:2010 [7:4:4]), and supports ambient temperatures from -20°C to +80°C, making it fit for a wide range of industrial environments.
With a CRC rating of 2, it offers moderate resistance to corrosion. The body is built with anodized aluminium, and the piston rod and cylinder barrel are made from high-alloy stainless steel, ensuring both lightness and strength. The theoretical force at 6 bar is approximately 67.9 N (advance stroke) and 50.9 N (return stroke), providing enough power for many light-duty and medium-duty automation tasks.
Application Scope of DSNU-12-70-P-A in Industrial Automation
The DSNU-12-70-P-A model, with a 70 mm stroke, is ideal for tasks where precise linear motion is required in compact spaces. It's often used in pneumatic clamping systems, automatic feeders, carton pushers, and inspection stations. Its size and force range make it perfect for small automation setups where quick, repeated strokes are needed—like sorting components on a conveyor or pushing light objects into position.
Because it supports proximity switch feedback, it integrates easily with PLC-controlled systems—helping maintenance teams ensure safe and accurate positioning. In pharma or electronics, the cleanroom-class design (ISO Class 6) allows use in semi-clean environments.
Overall, this cylinder balances force, flexibility, and size, making it a go-to choice for engineers working in tight spaces but needing dependable motion performance. Whether you're upgrading a legacy setup or designing a new pneumatic station, the DSNU-12-70-P-A can fit your need with minimal effort.
