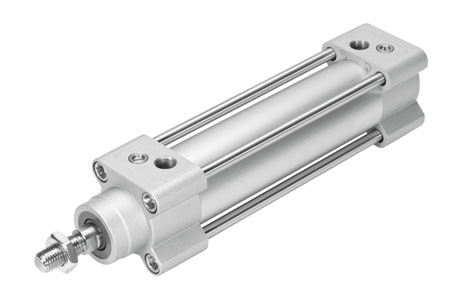

Festo DSBG-80 Pneumatic Cylinder
The Festo DSBG-80 Pneumatic Cylinder offers M20x1.5; M20; M16x1.5; M16; M12 rod thread, Male thread; Female thread piston rod end, 80 mm diameter, andPiston; Piston rod; Tie rod; Cylinder barrel. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the DSBG Series.
| Brand | Festo |
| Product Type | ISO Cylinder |
| Product | DSBG-80 |
Festo DSBG-80 Pneumatic Cylinder โ Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 1; 2800 |
| Piston diameter | 80 mm |
| Piston rod thread | M20x1.5; M20; M16x1.5; M16; M12 |
| Torsional backlash at piston rod +/- | -0.45; 0.45 |
| Based on standard | ISO 15552 |
| Cushioning | Elastic cushioning rings/plates at both ends; Self-adjusting pneumatic end-position cushioning; Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread; Female thread |
| Design | Piston; Piston rod; Tie rod; Cylinder barrel |
| Position detection | Via proximity switch |
| Symbol | 00991217; 00991218; 00991235; 00991237; 00992970; 00992971 |
| Operating pressure | 0.05; 12 |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress; 3 - high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L; VDMA24364 zone III |
| Ambient temperature | -40; 150 |
| Impact energy in end positions | 1.8 |
| Cushioning length | 32 |
| Type of mounting | Either:; Via female thread; With accessories |
| Pneumatic connection | G3/8 |
| Material cover | Die-cast aluminium, coated |
| Material piston seal | FPM; HNBR; TPE-U(PU) |
| Material piston | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel, hard chrome-plated; High-alloy steel; High-alloy stainless steel |
| Material piston rod wiper | FPM; HNBR; PE; TPE-U(PU) |
| Buffer seal material | FPM; TPE-U(PU) |
| Cushioning boss material | Wrought aluminium alloy; POM |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Material nut | Galvanised steel; High-alloy stainless steel |
| Material rod wiper | Brass; PTFE reinforced |
| Material bearing | Bronze; Metal polymer compound; POM |
| Material collar nut | Galvanised steel |
| Material tie rod | High-alloy steel; High-alloy stainless steel |
