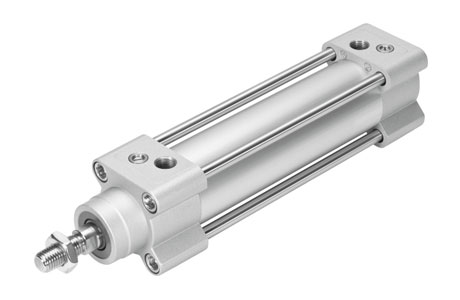

Festo DSBG-63-500-PPVA-N3 Pneumatic Cylinder
The Festo DSBG-63-500-PPVA-N3 Pneumatic Cylinder offers M16x1.5 rod thread, Male thread piston rod end, 63 mm diameter, andPiston; Piston rod; Tie rod; Cylinder barrel. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the DSBG Series.
| Brand | Festo |
| Product Type | ISO Cylinder |
| Product | DSBG-63-500-PPVA-N3 |
Festo DSBG-63-500-PPVA-N3 Pneumatic Cylinder โ Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 500 |
| Piston diameter | 63 mm |
| Piston rod thread | M16x1.5 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design | Piston; Piston rod; Tie rod; Cylinder barrel |
| Position detection | Via proximity switch |
| Symbol | 991235 |
| Operating pressure | 0.4; 12 |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20; 80 |
| Impact energy in end positions | 1.3 |
| Cushioning length | 22 |
| Type of mounting | Either:; Via female thread; With accessories |
| Pneumatic connection | G3/8 |
| Material cover | Die-cast aluminium, coated |
| Material piston seal | TPE-U(PU) |
| Material piston | Wrought aluminium alloy |
| Material piston rod | High-alloy steel |
| Material piston rod wiper | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) |
| Cushioning boss material | POM |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Material nut | Galvanised steel |
| Material bearing | POM |
| Material collar nut | Galvanised steel |
| Material tie rod | High-alloy steel |
| Moving mass | 1680 |
| Product weight | 4490 |
