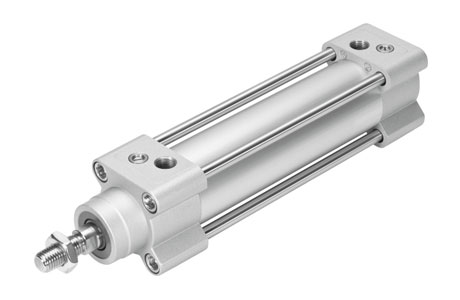

Festo DSBG-250 Pneumatic Cylinder
The Festo DSBG-250 Pneumatic Cylinder offers M42x2; M42; M36x2; M30x2; M30; M27x2; M27; M24 rod thread, Male thread; Female thread piston rod end, 250 mm diameter, andPiston; Piston rod; Tie rod; Cylinder barrel. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the DSBG Series.
| Brand | Festo |
| Product Type | ISO Cylinder |
| Model Number | DSBG-250 |
Festo DSBG-250 Pneumatic Cylinder – Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 1; 2250 |
| Piston diameter | 250 mm |
| Piston rod thread | M42x2; M42; M36x2; M30x2; M30; M27x2; M27; M24 |
| Cushioning | Elastic cushioning rings/plates at both ends; Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread; Female thread |
| Design | Piston; Piston rod; Tie rod; Cylinder barrel |
| Position detection | Via proximity switch |
| Symbol | 00991217; 00991218; 00991235; 00991237 |
| Operating pressure | 0.6; 10 |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress; 3 - high corrosion stress |
| Ambient temperature | -20; 120 |
| Material cover | Cast aluminium, coated |
