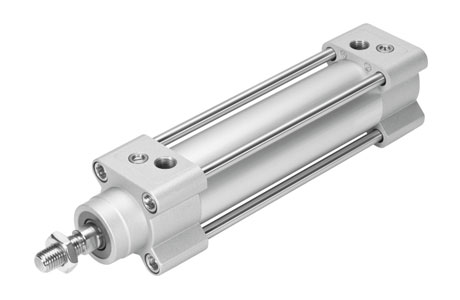

Festo DSBG-200-PPVA-N3 Pneumatic Cylinder

Name: Festo DSBG-200-PPVA-N3 2389803
Brand: Festo
SKU: DSBG-200-PPVA-N3
Rating: 5 (5 reviews)

The Festo DSBG-200-PPVA-N3 Pneumatic Cylinder offers M36x2 rod thread, Male thread piston rod end, 200 mm diameter, andPiston; Piston rod; Tie rod; Cylinder barrel. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the DSBG Series.

Datasheet

Festo DSBG-200-PPVA-N3 Pneumatic Cylinder – Technical Specifications

Specification	Value
Stroke	1; 2700
Piston diameter	200 mm
Piston rod thread	M36x2
Cushioning	Pneumatic cushioning, adjustable at both ends
Mounting position	optional
Conforms to standard	ISO 15552
Piston-rod end	Male thread
Design	Piston; Piston rod; Tie rod; Cylinder barrel
Position detection	Via proximity switch
Symbol	991235
Operating pressure	0.6; 10
Mode of operation	Double-acting
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC	2 - Moderate corrosion stress
Ambient temperature	-20; 80
Type of mounting	Either:; Via female thread; With accessories
Pneumatic connection	G3/4
Material cover	Cast aluminium, coated
