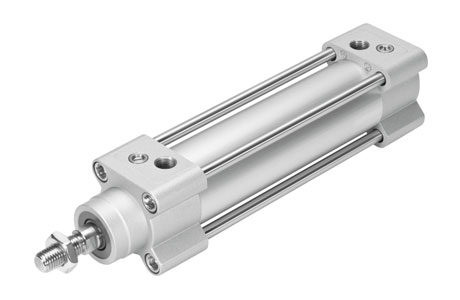

Festo DSBG-200 Pneumatic Cylinder
The Festo DSBG-200 Pneumatic Cylinder offers M36x2; M36; M30x2; M27x2; M27; M24; M20x1.5; M20 rod thread, Male thread; Female thread piston rod end, 200 mm diameter, andPiston; Piston rod; Tie rod; Cylinder barrel. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the DSBG Series.
| Brand | Festo |
| Product Type | ISO Cylinder |
| Product | DSBG-200 |
Festo DSBG-200 Pneumatic Cylinder – Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 1; 2700 |
| Piston diameter | 200 mm |
| Piston rod thread | M36x2; M36; M30x2; M27x2; M27; M24; M20x1.5; M20 |
| Based on standard | ISO 15552 |
| Cushioning | Elastic cushioning rings/plates at both ends; Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread; Female thread |
| Design | Piston; Piston rod; Tie rod; Cylinder barrel |
| Position detection | Via proximity switch |
| Symbol | 00991217; 00991218; 00991235; 00991237 |
| Operating pressure | 0.6; 10 |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress; 3 - high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L; VDMA24364 zone III |
| Ambient temperature | -20; 150 |
| Impact energy in end positions | 4; 4.8 |
| Cushioning length | 48 |
| Pneumatic connection | G3/4 |
| Material cover | Cast aluminium, coated |
| Material piston seal | FPM; NBR |
| Material piston | Cast aluminium |
| Material piston rod | High-alloy stainless steel, hard chrome-plated; High-alloy steel; High-alloy stainless steel |
| Material piston rod wiper | FPM; NBR |
| Buffer seal material | FPM; TPE-U(PU) |
| Cushioning boss material | Wrought aluminium alloy; POM |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Material nut | Galvanised steel; High-alloy stainless steel |
| Material rod wiper | Brass |
| Material bearing | Bronze; Metal polymer compound |
| Material collar nut | Galvanised steel |
| Material tie rod | High-alloy steel; High-alloy stainless steel |
