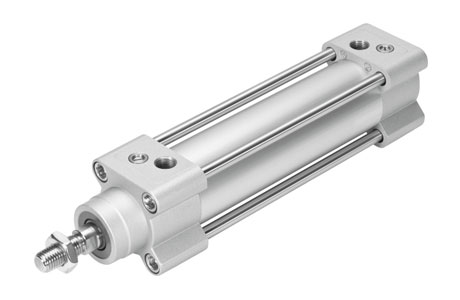

Festo DSBG-160 Pneumatic Cylinder
| Brand | Festo |
| Product Type | ISO Cylinder |
| Model Number | DSBG-160 |
Festo DSBG-160 Pneumatic Cylinder β Technical Specifications
| Specification | Value |
|---|
| Stroke | 1; 2700 |
| Piston diameter | 160 mm |
| Piston rod thread | M36x2; M36; M30x2; M27x2; M27; M24; M20x1.5; M20; M16x1.5; M16 |
| Cushioning | Elastic cushioning rings/plates at both ends; Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread; Female thread |
| Design | Piston; Piston rod; Tie rod; Cylinder barrel |
| Position detection | Via proximity switch |
| Symbol | 00991217; 00991218; 00991235; 00991237 |
| Operating pressure | 0.6; 10 |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress; 3 - high corrosion stress |
| Ambient temperature | -20; 150 |
| Pneumatic connection | G3/4 |
| Material cover | Cast aluminium, coated |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Material nut | Galvanised steel |
| Material bearing | Metal polymer compound |
