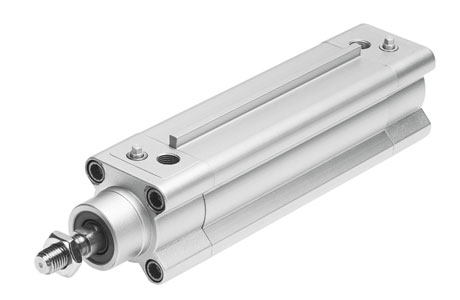

Festo DSBF-C-50-160-PPVA-N3-R Pneumatic Cylinder

Name: Festo DSBF-C-50-160-PPVA-N3-R 1775264
Brand: Festo
SKU: DSBF-C-50-160-PPVA-N3-R
Rating: 4.2 (4 reviews)

The Festo DSBF-C-50-160-PPVA-N3-R Pneumatic Cylinder offers M16x1.5 rod thread, Male thread piston rod end, 50 mm diameter, andPiston; Piston rod; Profile barrel. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the DSBF Series.

Datasheet

Festo DSBF-C-50-160-PPVA-N3-R Pneumatic Cylinder – Technical Specifications

Specification	Value
Stroke	160
Piston diameter	50 mm
Piston rod thread	M16x1.5
Cushioning	Pneumatic cushioning, adjustable at both ends
Mounting position	optional
Conforms to standard	ISO 15552
Piston-rod end	Male thread
Design	Piston; Piston rod; Profile barrel
Position detection	Via proximity switch
Symbol	991235
Operating pressure	0.4; 12
Mode of operation	Double-acting
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC	3 - high corrosion stress
Ambient temperature	-20; 80
Type of mounting	Either:; Via female thread; With accessories
Pneumatic connection	G1/4
Material cover	Die-cast aluminium, coated
Material cylinder barrel	Anodised wrought aluminium alloy
Material nut	High-alloy stainless steel
Material bearing	POM
Material collar screws	Galvanised steel
Product weight	2169
