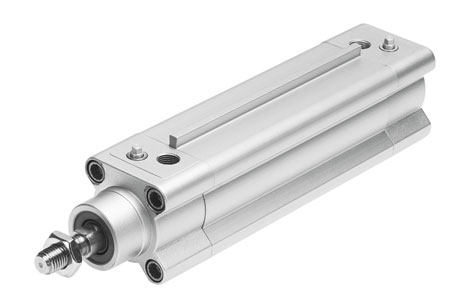

Festo DSBF-C-125-40-PPVA-N3-R Pneumatic Cylinder
The Festo DSBF-C-125-40-PPVA-N3-R Pneumatic Cylinder offers M27x2 rod thread, Male thread piston rod end, 125 mm diameter, andPiston; Piston rod; Profile barrel. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the DSBF Series.
| Brand | Festo |
| Product Type | ISO Cylinder |
| Product | DSBF-C-125-40-PPVA-N3-R |
Festo DSBF-C-125-40-PPVA-N3-R Pneumatic Cylinder โ Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 40 |
| Piston diameter | 125 mm |
| Piston rod thread | M27x2 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design | Piston; Piston rod; Profile barrel |
| Position detection | Via proximity switch |
| Symbol | 991235 |
| Operating pressure | 0.2; 10 |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -20; 80 |
| Impact energy in end positions | 3.3 |
| Cushioning length | 45 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 6881 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 7363 |
| Moving mass for 0 mm stroke | 2245 |
| Additional moving mass per 10 mm stroke | 63 |
| Basic weight for 0 mm stroke | 6928 |
| Additional weight per 10 mm stroke | 163 |
| Type of mounting | Either:; Via female thread; With accessories |
| Pneumatic connection | G1/2 |
| Note on materials | RoHS-compliant |
| Material cover | Die-cast aluminium, coated |
| Material piston seal | TPE-U(PU) |
| Material piston | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Material piston rod wiper | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) |
| Cushioning boss material | POM |
| Material cylinder barrel | Anodised wrought aluminium alloy |
| Material nut | High-alloy stainless steel |
| Material bearing | POM |
| Material collar screws | Galvanised steel |
| Moving mass | 2497 |
| Product weight | 7580 |
