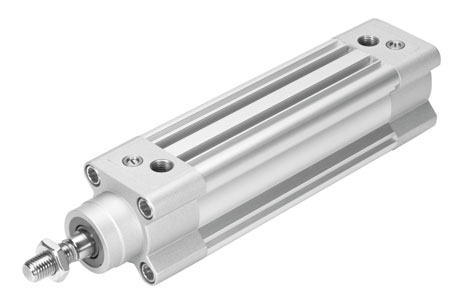

Festo DSBC-32-250-PPVA-N3 Pneumatic Cylinder

Name: Festo DSBC-32-250-PPVA-N3 1376430
Brand: Festo
SKU: DSBC-32-250-PPVA-N3
Rating: 4.3 (4 reviews)

The Festo DSBC-32-250-PPVA-N3 Pneumatic Cylinder offers M10x1.25 rod thread, Male thread piston rod end, 32 mm diameter, andPiston; Piston rod; Profile barrel. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the DSBC Series.

Datasheet

Festo DSBC-32-250-PPVA-N3 Pneumatic Cylinder – Technical Specifications

Specification	Value
Stroke	250
Piston diameter	32 mm
Piston rod thread	M10x1.25
Cushioning	Pneumatic cushioning, adjustable at both ends
Mounting position	optional
Conforms to standard	ISO 15552
Piston-rod end	Male thread
Design	Piston; Piston rod; Profile barrel
Position detection	Via proximity switch
Operating pressure	0.6; 12
Mode of operation	Double-acting
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC	2 - Moderate corrosion stress
Ambient temperature	-20; 80
Type of mounting	Either:; Via female thread; With accessories
Pneumatic connection	G1/8
Material cover	Die-cast aluminium, coated
Material cylinder barrel	Smooth-anodised wrought aluminium alloy
Material nut	Galvanised steel
Material bearing	POM
Material collar screws	Galvanised steel
Product weight	1140
