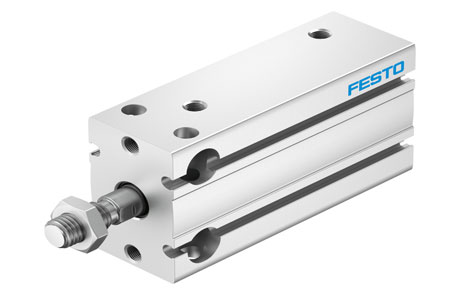

Festo DPDM-20-5-P-PA Pneumatic Cylinder
The Festo DPDM-20-5-P-PA Pneumatic Cylinder offers Single-acting; Pulling operation, M5 connection, 20 mm diameter, andPiston; Piston rod; Profile barrel. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the DPDM Series.
| Brand | Festo |
| Product Type | Compact Cylinder |
| Product | DPDM-20-5-P-PA |
Festo DPDM-20-5-P-PA Pneumatic Cylinder โ Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 5 |
| Piston diameter | 20 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Mode of operation | Single-acting; Pulling |
| Design | Piston; Piston rod; Profile barrel |
| Position detection | Via proximity switch |
| Symbol | 991850 |
| Variants | Piston rod at one end |
| Operating pressure | 2; 8 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -10; 80 |
| Type of mounting | Either:; With through-hole; Via female thread |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | TPE-U(PU) |
| Material housing | Anodised wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
