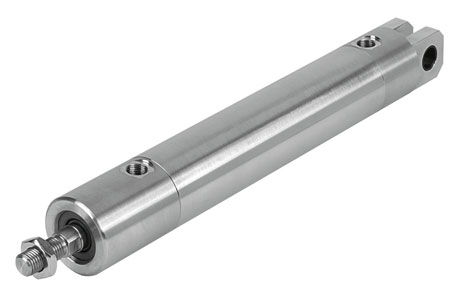

Festo CRHD-80- -PPV-A-MS-S6 Pneumatic Cylinder
The Festo CRHD-80- -PPV-A-MS-S6 Pneumatic Cylinder offers Double-acting operation, G3/8 connection, 80 mm diameter, andPiston; Piston rod. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the CRHD Series.
| Brand | Festo |
| Product Type | Round Cylinder |
| Product | CRHD-80- -PPV-A-MS-S6 |
Festo CRHD-80- -PPV-A-MS-S6 Pneumatic Cylinder – Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 10; 500 |
| Piston diameter | 80 mm |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Design | Piston; Piston rod |
| Position detection | Via proximity switch |
| Symbol | 991235 |
| Variants | Heat-resistant seals max. 120°C |
| Operating pressure | 1; 10 |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitable for use with food | See supplementary material information |
| Ambient temperature | -20; 120 |
| Cushioning length | 31 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 2721 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 3016 |
| Moving mass for 0 mm stroke | 717 |
| Additional moving mass per 10 mm stroke | 38 |
| Basic weight for 0 mm stroke | 5072 |
| Additional weight per 10 mm stroke | 38 |
| Pneumatic connection | G3/8 |
| Material cover | High-alloy stainless steel |
| Material seals | FPM |
| Material housing | High-alloy stainless steel |
| Material piston rod | High-alloy stainless steel |
The CRHD-80-PPV-A-MS-S6 from Festo features a robust 80 mm piston diameter and supports a variable stroke range from 10 mm to 500 mm. Engineered with pneumatic cushioning adjustable at both ends, it ensures smoother stroke transitions and reduced mechanical stress. Its double-acting operation offers a significant thrust force, with a maximum of 3016 N on the advance stroke and 2721 N on the return stroke at 0.6 MPa, making it ideal for high-load linear applications.
This Festo round cylinder is constructed with a high-alloy stainless steel housing, FPM seals, and a heat-resistant variant capable of withstanding temperatures up to 120°C. The G3/8 pneumatic connection offers easy integration, and the position detection via proximity switch supports intelligent automation systems. It conforms to ISO 8573-1:2010 [7:4:4] standards for compressed air quality and is compliant with VDMA24364-B2-L for paint-wetting impairment substances (PWIS). With a corrosion resistance class CRC 3, it can withstand harsh operating environments, including chemical exposure and washdown areas.
Weighing 5072 g at 0 mm stroke and adding 38 g per 10 mm extension, the CRHD series is optimized for both fixed and mobile machinery setups. Its food-grade suitability (with supplementary data) adds further flexibility for food and pharma automation. With reliability proven across thousands of installations worldwide, the CRHD-80-PPV-A-MS-S6 continues to set benchmarks for durability, safety, and performance. For in-depth specs and CAD downloads, visit the official Festo website.
The Festo CRHD-80-PPV-A-MS-S6 is widely used in automation systems where precision and endurance are critical. In packaging lines, it actuates sealing jaws and flap closers with consistent force. In automotive assembly, it powers clamping, lifting, or pushing mechanisms where reliability under high duty cycles is essential.
Its high-temperature resistance makes it suitable for drying tunnels, steel mills, or process equipment near furnaces. Meanwhile, its stainless steel body and PWIS-compliant design support cleanroom and paint-shop operations. Engineers also value its ability to integrate proximity switches, making it ideal for PLC-controlled environments with real-time feedback needs.
If you're upgrading from legacy cylinders or building new modular machines, the CRHD series offers dependable motion control with minimal maintenance. Its balanced construction, flexibility in mounting, and long service life make it a preferred choice for OEMs and plant maintenance teams across India. Trust Festo’s CRHD round cylinders for accuracy, safety, and long-term savings.
