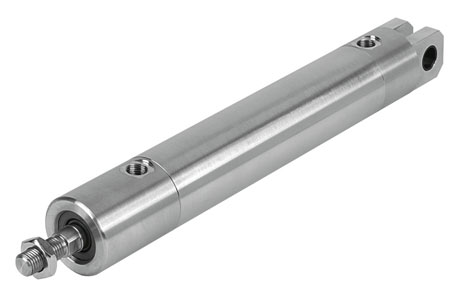

Festo CRHD-80- -PPV-A-MS Pneumatic Cylinder
The Festo CRHD-80- -PPV-A-MS Pneumatic Cylinder offers Double-acting operation, G3/8 connection, 80 mm diameter, andPiston; Piston rod. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the CRHD Series.
| Brand | Festo |
| Product Type | Round Cylinder |
| Product | CRHD-80- -PPV-A-MS |
Festo CRHD-80- -PPV-A-MS Pneumatic Cylinder – Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 10; 500 |
| Piston diameter | 80 mm |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Design | Piston; Piston rod |
| Position detection | Via proximity switch |
| Symbol | 991235 |
| Operating pressure | 1; 10 |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitable for use with food | See supplementary material information |
| Ambient temperature | -20; 80 |
| Cushioning length | 31 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 2721 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 3016 |
| Moving mass for 0 mm stroke | 717 |
| Additional moving mass per 10 mm stroke | 38 |
| Basic weight for 0 mm stroke | 5072 |
| Additional weight per 10 mm stroke | 38 |
| Pneumatic connection | G3/8 |
| Material cover | High-alloy stainless steel |
| Material seals | NBR; TPE-U(PU) |
| Material housing | High-alloy stainless steel |
| Material piston rod | High-alloy stainless steel |
The CRHD-80-PPV-A-MS is a robust double-acting pneumatic cylinder developed by Festo, known for precision automation technology. With a large 80 mm piston diameter and a configurable stroke length from 10 to 500 mm, it delivers a powerful linear motion with theoretical forces up to 3016 N on the advance stroke and 2721 N on the return stroke, when operated at 0.6 MPa (6 bar). Its operation is smooth and energy-efficient, thanks to the adjustable pneumatic cushioning at both ends.
The cylinder's housing, piston rod, and cover are crafted from high-alloy stainless steel, making it highly resistant to corrosion (rated CRC 3) and ideal for harsh environments. It supports operation in ambient temperatures ranging from -20°C to +80°C, and the integrated NBR and TPE-U(PU) seals ensure long-term durability. The position detection is managed via proximity switches, enabling precise motion control in automated systems. Its compliance with VDMA24364-B2-L standards means it is also suitable for environments sensitive to paint-wetting impairment substances (PWIS), such as automotive paint shops and food-grade areas.
The G3/8 pneumatic connection and flexible mounting position make integration easy across a wide range of systems. It supports lubricated operation where required and conforms to ISO 8573-1:2010 [7:4:4] standards for compressed air. Whether you're modernizing legacy machines or building new automation lines, the Festo CRHD-80-PPV-A-MS offers a dependable and scalable solution backed by one of the most trusted brands in industrial automation. View the official product page on Festo.com.
The Festo CRHD Round Cylinder CRHD-80-PPV-A-MS is designed for applications where strength, durability, and control are critical. It is commonly used in automated assembly lines, packaging systems, press machines, and conveyor automation—especially in sectors like automotive, pharma, and food processing.
In machine-building projects, this round cylinder handles precise repetitive movements, such as pressing, clamping, or pushing components. Thanks to its stainless steel construction, it resists corrosion and wear even in humid or chemically active environments. Maintenance engineers often prefer it for long-term reliability and low service requirements, while system integrators value its adaptability across multiple mounting configurations.
If you're an engineering student or a junior maintenance technician, understanding this cylinder is a great way to learn about motion control fundamentals. Its proximity switch compatibility offers integration with modern PLCs for real-time position monitoring. Whether it's a retrofit or a new system, the Festo CRHD-80-PPV-A-MS brings high force, reliability, and technical consistency to any industrial setup.
