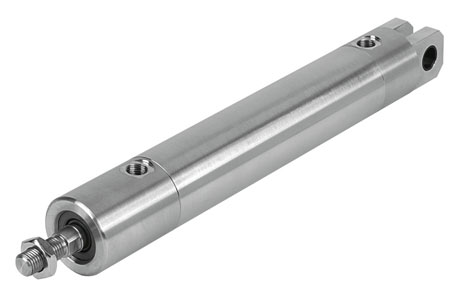

Festo CRHD-80- -PPV-A-MC Pneumatic Cylinder
The Festo CRHD-80- -PPV-A-MC Pneumatic Cylinder offers Double-acting operation, G3/8 connection, 80 mm diameter, andPiston; Piston rod. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the CRHD Series.
| Brand | Festo |
| Product Type | Round Cylinder |
| Product | CRHD-80- -PPV-A-MC |
Festo CRHD-80- -PPV-A-MC Pneumatic Cylinder – Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 10; 500 |
| Piston diameter | 80 mm |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Design | Piston; Piston rod |
| Position detection | Via proximity switch |
| Symbol | 991235 |
| Operating pressure | 1; 10 |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitable for use with food | See supplementary material information |
| Ambient temperature | -20; 80 |
| Cushioning length | 31 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 2721 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 3016 |
| Moving mass for 0 mm stroke | 717 |
| Additional moving mass per 10 mm stroke | 38 |
| Basic weight for 0 mm stroke | 5072 |
| Additional weight per 10 mm stroke | 38 |
| Pneumatic connection | G3/8 |
| Material cover | High-alloy stainless steel |
| Material seals | NBR; TPE-U(PU) |
| Material housing | High-alloy stainless steel |
| Material piston rod | High-alloy stainless steel |
The CRHD-80-PPV-A-MC is a robust double-acting round cylinder from Festo that offers impressive mechanical force and environmental durability. With a piston diameter of 80 mm and a stroke range of 10 to 500 mm, this actuator delivers powerful and consistent motion. It operates with compressed air per ISO 8573-1:2010 [7:4:4] standards and supports a pressure range of 1 to 10 bar, making it highly adaptable for precision-driven pneumatic systems.
Engineered with adjustable pneumatic cushioning at both ends, it ensures shock-absorbed extension and retraction, extending system lifespan and maintaining performance over time. The internal structure includes a piston and piston rod design with integrated position sensing via proximity switches for real-time feedback and better automation control. Its outer body, piston rod, and housing are constructed from high-alloy stainless steel, enhancing corrosion resistance and allowing use in CRC Class 3 environments, ideal for food processing, chemical plants, and outdoor installations.
The Festo CRHD-80-PPV-A-MC also complies with VDMA24364-B2-L PWIS standards, confirming its suitability for sensitive areas such as automotive paint lines. It operates in ambient temperatures from -20°C to +80°C, and its seals made of NBR and TPE-U(PU) materials ensure long-term leak-proof function. With a theoretical force output of up to 3016 N (advance) and 2721 N (return), and pneumatic port size G3/8, this model is a reliable component for OEMs, integrators, and industrial engineers seeking performance and trust. View full specs on the official Festo website.
The Festo CRHD-80-PPV-A-MC is widely used in industrial automation systems where strong, controlled linear motion is essential. In automotive assembly plants, it is deployed to move heavy parts into position with precision. Its adjustable cushioning ensures smooth motion without mechanical shocks, even under frequent cycles.
In food and packaging industries, this round cylinder operates reliably in washdown areas and humid zones due to its stainless steel build and PWIS compliance. When paired with proximity sensors, it becomes part of an intelligent motion system—allowing PLCs to control packaging presses, filling machines, and sorting conveyors with synchronized timing and reduced cycle times.
Maintenance teams appreciate its simplicity, long life, and easy integration. Engineering students and junior technicians can quickly understand its configuration, as it uses standardized G3/8 pneumatic connections and follows Festo's modular system approach. With this cylinder, even legacy machines can be upgraded with minimal changes, delivering long-term reliability and confidence across Indian manufacturing plants.
