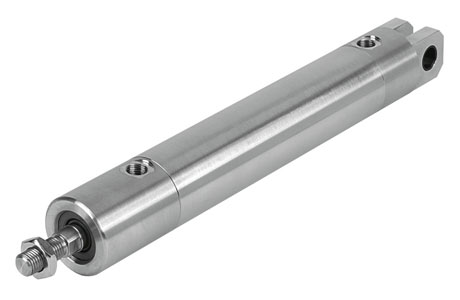

Festo CRHD-63- -PPV-A-MS Pneumatic Cylinder
The Festo CRHD-63- -PPV-A-MS Pneumatic Cylinder offers Double-acting operation, G3/8 connection, 63 mm diameter, andPiston; Piston rod. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the CRHD Series.
| Brand | Festo |
| Product Type | Round Cylinder |
| Product | CRHD-63- -PPV-A-MS |
Festo CRHD-63- -PPV-A-MS Pneumatic Cylinder – Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 10; 500 |
| Piston diameter | 63 mm |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Design | Piston; Piston rod |
| Position detection | Via proximity switch |
| Symbol | 991235 |
| Operating pressure | 1; 10 |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitable for use with food | See supplementary material information |
| Ambient temperature | -20; 80 |
| Cushioning length | 21 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 1682 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 1870 |
| Moving mass for 0 mm stroke | 398 |
| Additional moving mass per 10 mm stroke | 25 |
| Basic weight for 0 mm stroke | 2912 |
| Additional weight per 10 mm stroke | 25 |
| Pneumatic connection | G3/8 |
| Material cover | High-alloy stainless steel |
| Material seals | NBR; TPE-U(PU) |
| Material housing | High-alloy stainless steel |
| Material piston rod | High-alloy stainless steel |
The CRHD-63-PPV-A-MS by Festo is engineered for robust industrial performance, featuring a 63 mm piston diameter and stroke lengths ranging from 10 mm to 500 mm. This double-acting round cylinder utilizes adjustable pneumatic cushioning at both ends, ensuring smooth deceleration and reduced wear during end-of-stroke impact. It operates efficiently under an input pressure range of 1 to 10 bar, producing a maximum theoretical force of 1870 N on the advance stroke and 1682 N on the return stroke at 0.6 MPa.
Made with high-alloy stainless steel for the housing, cover, and piston rod, the cylinder provides exceptional resistance against corrosion—classified under CRC class 3. The NBR and TPE-U(PU) seals offer high reliability across varied operating pressures and environments. With position detection via proximity switch integration and compatibility with lubricated air (as per ISO 8573-1:2010 [7:4:4]), this model is ready for smart factory automation and process safety systems. The ambient operating range of -20°C to +80°C makes it highly adaptable for cold storage, food-grade machinery, and other sensitive production zones.
Its compliance with VDMA24364-B2-L (PWIS) standards confirms its suitability for paint shop and surface treatment environments. The G3/8 pneumatic connection and modular design allow seamless integration into new or retrofit systems. Thanks to its strong mechanical construction and proven Festo engineering, the CRHD-63-PPV-A-MS remains a top choice across packaging, automotive, and assembly automation industries. For further technical data and selection tools, visit the official Festo product catalog.
The Festo CRHD Round Cylinder is commonly deployed in high-frequency actuation applications such as automated pressing, gate control, pick-and-place modules, and indexing systems. Indian engineers across manufacturing sectors prefer this cylinder for its clean design, high thrust, and dependable motion control.
In packaging plants, this model can control flap lifters or act as a synchronized stopper for fast-moving conveyor systems. In automotive fixtures, it can serve as a clamping or part-positioning tool with excellent cycle accuracy. The ability to connect proximity sensors directly enhances its compatibility with PLC-controlled automation, enabling real-time position tracking and fault prevention.
Whether you're upgrading a legacy pneumatic system or building a new automation line, the CRHD-63-PPV-A-MS ensures stable performance, easy integration, and longer operational life. It’s not just a cylinder—it’s an essential actuator that elevates control, reduces downtime, and strengthens productivity in every cycle.
