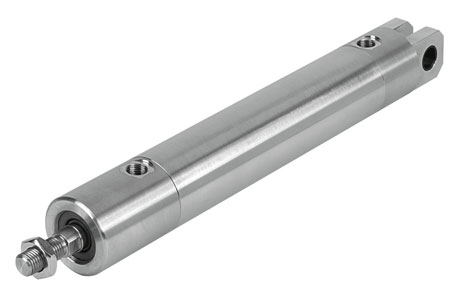

Festo CRHD-100- -PPV-A-MS Pneumatic Cylinder
The Festo CRHD-100- -PPV-A-MS Pneumatic Cylinder offers Double-acting operation, G3/8 connection, 100 mm diameter, andPiston; Piston rod. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the CRHD Series.
| Brand | Festo |
| Product Type | Round Cylinder |
| Product | CRHD-100- -PPV-A-MS |
Festo CRHD-100- -PPV-A-MS Pneumatic Cylinder – Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 10; 500 |
| Piston diameter | 100 mm |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Design | Piston; Piston rod |
| Position detection | Via proximity switch |
| Symbol | 991235 |
| Operating pressure | 1; 10 |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitable for use with food | See supplementary material information |
| Ambient temperature | -20; 80 |
| Cushioning length | 31 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 4418 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 4712 |
| Moving mass for 0 mm stroke | 968 |
| Additional moving mass per 10 mm stroke | 38 |
| Basic weight for 0 mm stroke | 8357 |
| Additional weight per 10 mm stroke | 38 |
| Pneumatic connection | G3/8 |
| Material cover | High-alloy stainless steel |
| Material seals | NBR; TPE-U(PU) |
| Material housing | High-alloy stainless steel |
| Material piston rod | High-alloy stainless steel |
The Festo CRHD-100-PPV-A-MS sets a benchmark in heavy-duty pneumatic motion applications. With a piston diameter of 100 mm and configurable stroke lengths from 10 to 500 mm, it delivers a theoretical advance force of 4712 N and a return force of 4418 N at 6 bar pressure. Its pneumatic cushioning is adjustable at both ends, providing smooth motion control and longer service life for critical automation processes.
The high-alloy stainless steel construction for the housing, piston rod, and cover ensures robust corrosion resistance, with a CRC 3 rating ideal for aggressive industrial settings. Designed for compressed air systems following ISO 8573-1:2010 [7:4:4], it supports both lubricated and non-lubricated operation. The cylinder integrates position detection via proximity switch and complies with VDMA24364-B2-L for paint-wetting impairment substances (PWIS) conformity, enhancing compatibility in food and cleanroom environments.
Its thermal tolerance between -20°C and +80°C, combined with NBR and TPE-U(PU) seals, allows consistent operation in diverse conditions. With a G3/8 pneumatic port, easy mounting, and modular accessories, the CRHD-100-PPV-A-MS fits seamlessly into modern industrial frameworks. Backed by Festo’s engineering reliability, this round cylinder is a top choice for OEMs, system integrators, and plant maintenance teams. Explore the official Festo datasheet for more technical insights.
The Festo Round Cylinder CRHD is widely used in automation cells, packaging machines, food-grade conveyors, and robotic systems. Its high-force output and stainless steel body make it suitable for applications such as pressing, lifting, locking, and sliding—especially in damp or chemically aggressive environments.
For example, in automotive assembly lines, it helps control clamp arms or press tools with consistent stroke precision. In the food processing industry, the CRHD’s PWIS conformity and optional use with food-safe lubricants ensure hygienic compliance while maintaining long-term reliability.
Whether you're a junior maintenance engineer managing machine uptime or a senior designer configuring pneumatic systems, this model ensures long-lasting performance, low maintenance, and seamless integration. Its durability and modularity make it a smart long-term investment for high-cycle operations.
